Radiological evaluation of a calyceal diverticulum presenting with hematuria

Cover Image

Cite item

Full Text

Abstract

Calyceal diverticula, also known as pyelogenic cysts, are a relatively uncommon condition, which is usually asymptomatic and incidentally diagnosed during routine imaging. In some cases, they may lead to concerning symptoms such as hematuria and flank pain, mimicking a renal tumor. In this case report, the patient suffered from hematuria that was initially suspected as a renal malignancy but was ultimately attributed to a calyceal diverticulum. The presented case allows evaluating one of the rarest and underestimated causes of hematuria and describes the main imaging features of calyceal diverticula. In particular, ultrasonography, computed tomography urography, dual-energy computed tomography, and magnetic resonance urography were performed. Subsequently, this case report also serves an educational purpose.

About the authors

Federica Masino

Foggia University School of Medicine

Email: federicamasino@gmail.com
ORCID iD: 0009-0004-4289-3289

MD

Italy, Foggia

Manuela Montatore

Foggia University School of Medicine

Email: manuela.montatore@unifg.it
ORCID iD: 0009-0002-1526-5047

MD

Italy, Foggia

Laura Eusebi

Carlo Urbani Hospital

Email: lauraeu@virgilio.it
ORCID iD: 0000-0002-4172-5126

MD

Italy, Jesi

Rossella Gifuni

Foggia University School of Medicine

Email: rossella.gifuni@gmial.com
ORCID iD: 0009-0009-9679-3861

MD

Italy, Foggia

Gianmichele Muscatella

Foggia University School of Medicine

Email: muscatella94@gmail.com
ORCID iD: 0009-0004-3535-5802

MD

Italy, Foggia

Marina Balbino

Foggia University School of Medicine

Email: marinabalbino93@gmail.com
ORCID iD: 0009-0009-2808-5708

MD

Italy, Foggia

Giuseppe Sortino

Carlo Urbani Hospital

Email: giuseppesortino@live.it

MD

Italy, Jesi

Lucia Pitoni

Carlo Urbani Hospital

Email: lucia.pitoni22@gmail.com
ORCID iD: 0000-0002-8419-090X

MD

Italy, Jesi

Giuseppe Guglielmi

Foggia University School of Medicine; Dimiccoli Hospital; IRCCS Casa Sollievo della Sofferenza Hospital

Author for correspondence.
Email: giuseppe.guglielmi@unifg.it
ORCID iD: 0000-0002-4325-8330

MD, Professor

Italy, Foggia; Barletta; San Giovanni Rotondo

References

  1. Zhao Y, Zhang R, Yun Y, et al. A case report of renal calyceal diverticulum with hypertension in children and review of literature. BMC pediatrics. 2022;22(1):35. doi: 10.1186/s12887-021-03081-5
  2. Zhang R, Shen W, Li X, et al. A Petal-like Calyceal Diverticulum. Urology. 2015;86(6):e31–e32. doi: 10.1016/j.urology.2015.09.003
  3. Zhang Z, Zhang Y, Wang X, et al. Challenges in the diagnosis of calyceal diverticulum: A report of two cases and review of the literature. Journal of X-ray science and technology. 2020;27(6):1155–1167. doi: 10.3233/XST-190549
  4. Waingankar N, Hayek S, Smith AD, Okeke Z. Calyceal diverticula: a comprehensive review. Reviews in urology. 2014;16(1):29–43.
  5. Kurkov AV, Pominalnaya VM, Nechay VV, et al. A Case Report of Calyceal Diverticulum: Differential Diagnosis for Organ-Preserving Operations. Frontiers in surgery. 2021;8:731796. doi: 10.3389/fsurg.2021.731796
  6. Montatore M, Muscatella G, Eusebi L, et al. Current Status on New Technique and Protocol in Urinary Stone Disease. Current Radiology Reports. 2023;11:161–176. doi: 10.1007/s40134-023-00420-5
  7. Eusebi L, Masino F, Gifuni R, et al. Role of Multiparametric-MRI in Bladder Cancer. Current Radiology Reports. 2023;11:69–80. doi: 10.1007/s40134-023-00412-5

Supplementary files

Supplementary Files
Action
1. JATS XML
Download

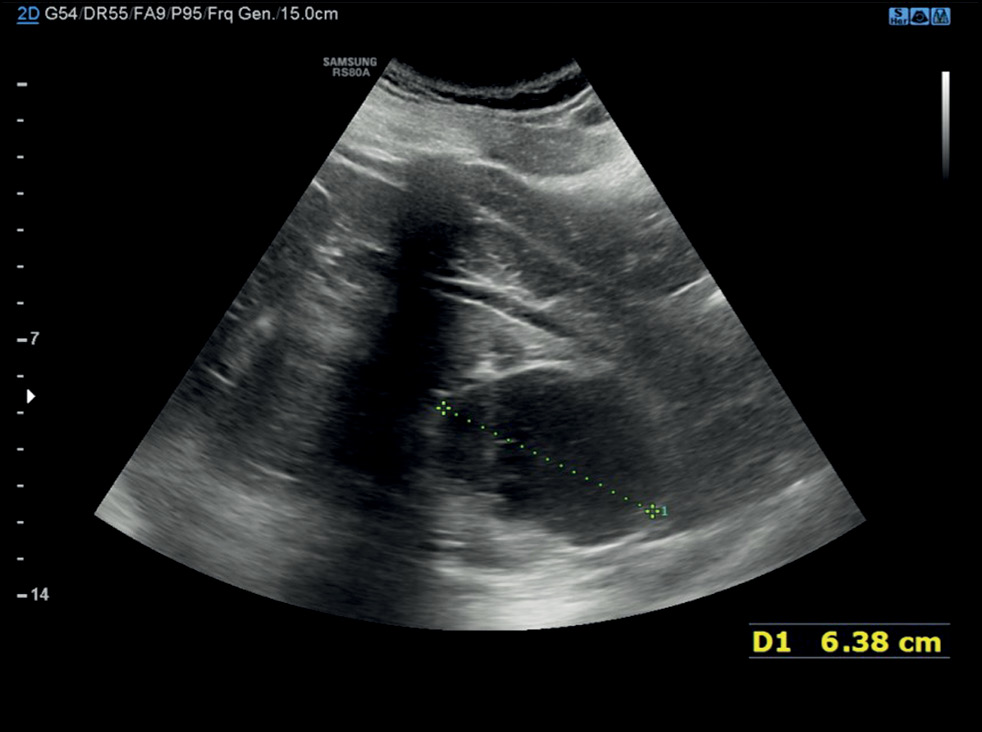

2. Fig. 1. Ultrasound examination revealed a large, heterogeneous formation, predominantly anechoic, with rounded, clear boundaries, located in the middle-lower part of the left kidney. The largest diameter was 6.38 cm.
