Superconducting Solenoid (7 T) Indirectly Cooled by Cryocoolers for THz Radiation

A. V. Bragin; Брагин А. В.; A. A. Volkov; Волков А. А.; V. V. Kubarev; Кубарев В. В.; N. A. Mezentsev; Мезенцев Н. А.; O. A. Tarasenko; Тарасенко О. А.; S. V. Khrushchev; Хрущев С. В.; V. M. Tsukanov; Цуканов В. М.; V. A. Shkaruba; Шкаруба В. А.

doi:10.31857/S1028096023110079

Superconducting Solenoid (7 T) Indirectly Cooled by Cryocoolers for THz Radiation

作者: Bragin A.V.¹, Volkov A.A.¹^,2, Kubarev V.V.¹, Mezentsev N.A.¹^,2, Tarasenko O.A.¹, Khrushchev S.V.¹^,2, Tsukanov V.M.¹^,2, Shkaruba V.A.¹^,2
隶属关系:
1. Budker Institute of Nuclear Physics SB RAS
2. Boreskov Institute of Catalysis SB RAS (SRF “SKIF”)
期: 编号 11 (2023)
页面: 78-83
栏目: Articles
URL: https://ogarev-online.ru/1028-0960/article/view/232221
DOI: https://doi.org/10.31857/S1028096023110079
EDN: https://elibrary.ru/MWQSII
ID: 232221

如何引用文章

全文:

开放存取

##reader.subscriptionAccessGranted##
受限制的访问

订阅存取

详细
作者简介
参考
补充文件
统计

详细

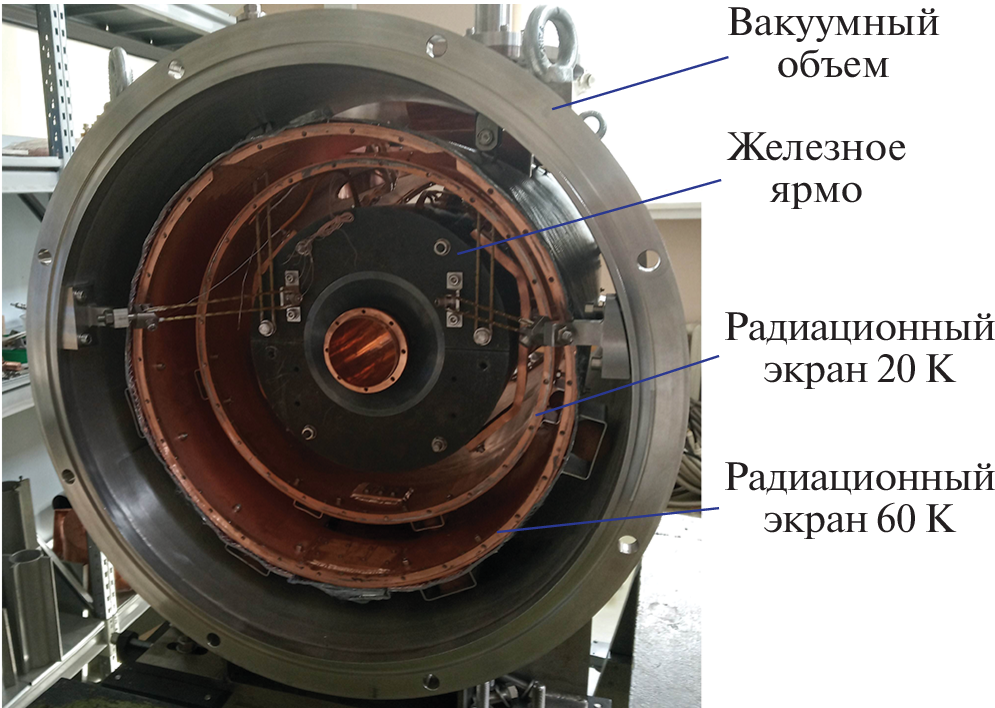

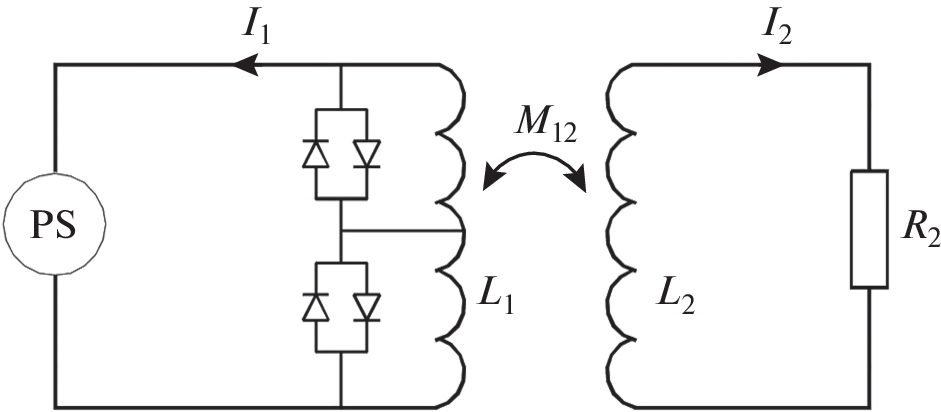

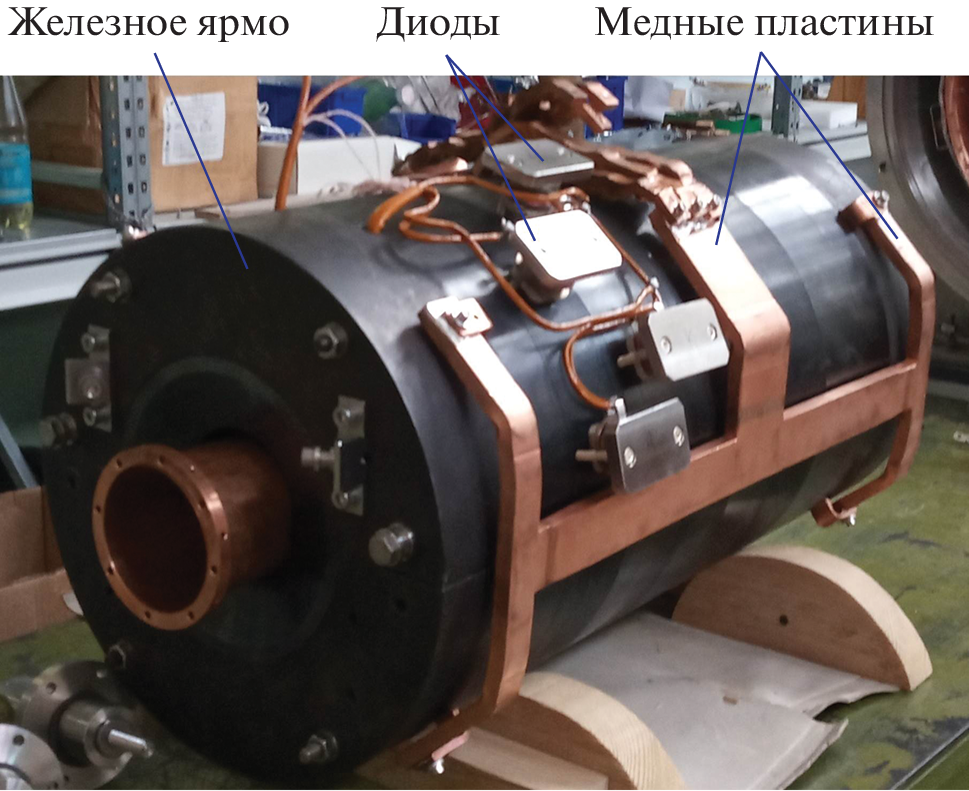

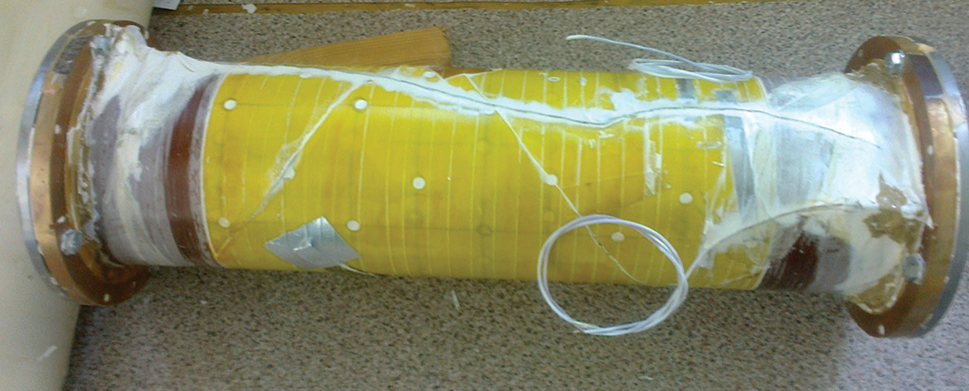

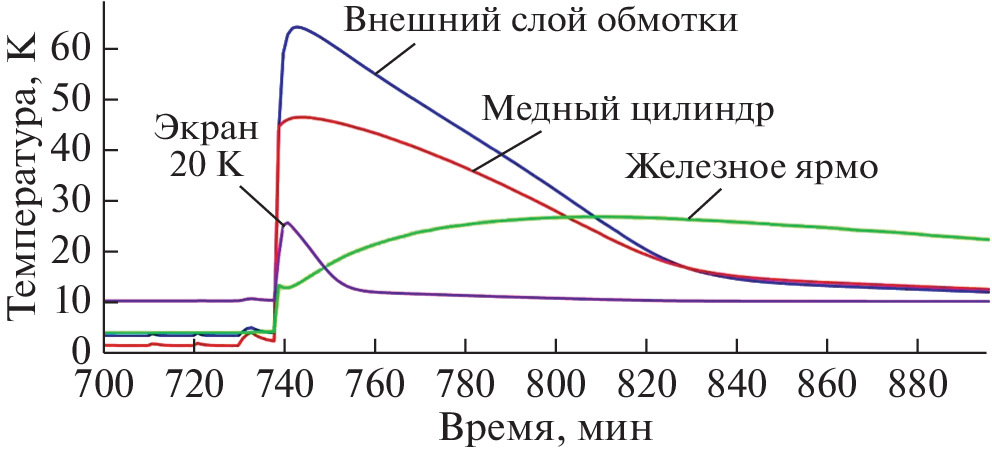

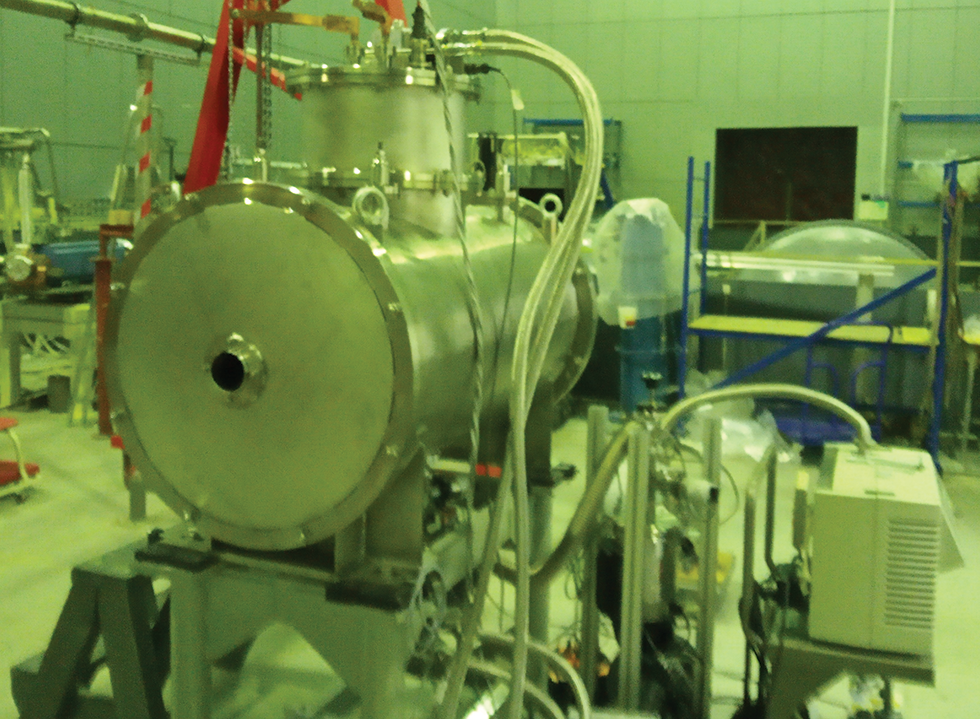

The test results and performance characteristics of an indirectly crycooled superconducting solenoid to be used at the THz spectroscopy experimental station of free-electron laser at the Institute of Nuclear Physics, are presented. The superconducting solenoid with a winding diameter of 102 mm and a length of 0.5 m was designed for a magnetic field of 6.5 T. The warm bore diameter of 80 mm is available for THz spectroscopy experiments. The superconducting wire Cu/NbTi = 1.4 was used. The design implements passive protection methods due to sectioning and secondary connected circuits in case of a sudden quench. The required field uniformity of 0.5% was ensured by using an iron yoke and additional side windings. The cryogenics of the solenoid is based on two Sumitomo HI cryocoolers. The solenoid and iron yoke are cooled by the second stage of the cryocooler via copper links. The manufacturing technology of the solenoid is described in detail. The solenoid was tested in a liquid helium bath and in its own cryostat. Its characteristics meet the requirements of the experimental station. The obtained filed of 7.5 T is greater than the designed one due to overcooling up to 3.6 K. The magnetic field was measured both in a bath cryostat and in a design cryostat; the results corresponded to the design calculations. The solenoid cooling time is 13 days. The quench happened only twice, at 5.6 and 7.5 T.

关键词

superconducting solenoid, terahertz radiation, indirectly cooled superconducting magnet, passively protected superconducting magnet, high magnetic field magnet.

参考

Kubarev V., Chesnokov E., Koshlyakov P. // Proc. 37th Int. Conf. on Infrared, Millimeter and Terahertz Waves IRMMW-THz 2012, Wollongong, Australia, September 23–28, 2012. Thu-C-2-4.
Kubarev V.V., Chesnokov E.N., Koshlyakov P.V. // Proc. 38th Int. Conf. on Infrared, Millimeter and Terahertz Waves IRMMW-THz 2013, Mainz on the Rhine, 2013. Tu5-5.
Chesnokov E.N., Kubarev V.V., Koshlyakov P.V. // Appl. Phys. Lett. 2014. V. 105. P. 261107.
Chesnokov E.N., Kubarev V.V., Koshlyakov P.V., Kulipanov G.N. // Appl. Phys. Lett. 2012. V. 101. P. 131109.
Chesnokov E.N., Kubarev V.V., Koshlyakov P.V., Kulipanov G.N. // Laser Phys. Lett. 2013. V. 10. P. 055701.
Chesnokov E.N., Kubarev V.V., Koshlyakov P.V. // Laser Phys. Lett. 2021. V. 18. Iss. 8. P. 085205.
Chesnokov E.N., Kubarev V.V., Krasnoperov L.N., Koshlyakov P.V. // Phys. Chem. Chem. Phys. 2020. V. 22. P. 20248.
Bragin A.V., Khrushchev S.V., Kubarev V.V., Mezencev N.A., Tsukanov V.M., Sozinov G.I., Shkaruba V.A. // Phys. Procedia. 2016. V. 84. P. 82.
Khrushchev S., Mezentsev N., Lev V., Shkaruba V., Syrovatin V., Tsukanov V. // Phys. Rev. Accel. Beams. Proc. IPAC-2014. WEPRI091. P. 4103. https://doi.org/10.18429/JACoW-IPAC2014-WEPRI091
Bragin A.V., Bernhard A., Casalbuoni S., Fajardo L.G., Ferracin P., Grau A., Gusev Ye.A., Hillenbrand S., Khrushchev S.V., Poletaev I.V., Shkaruba V.A., Schoerling D., Syrovatin V.M., Tarasenko O.A., Tsukanov V.M., Volkov A.A., Zolotarev K.V., Mezentsev N.A. // IEEE Trans. App. Supercond. 2016. V. 26. Iss. 4. P. 4102504.
https://www.ansys.com/
Schoerling D., Antoniou F., Bernhard A., Bragin A., Karppinen M., Maccaferri R., Mezentsev N., Papaphilippou Y., Peiffer P., Rossmanith R., Rumolo G., Russenschuck S., Vobly P., Zolotarev K. // Phys. Rev. Accel. Beams. 2012. V. 15. № 4. P. 042401.
Green M.A. // Cryogenics. 1984. V. 24. Iss. 1. P. 3.
Green M.A. // Cryogenics. 1984. V. 24. Iss. 12. P. 659.
Bragin A.V., Barkov L.M., Bashtovoj N.S., Grebenuk A.A., Karpov S.V., Okhapkin V.S., Pivovarov S.G., Popov Yu.S., Ruban A.A., Khazin B.I. // IEEE Trans. Appl. Supercond. 2010. V. 20. P. 2336.
