Acoustic Diagnostics of Underwater Emissions Propagating in the Form of a Multiphase Jet

全文:

作者简介

I. Gimaltdinov

编辑信件的主要联系方式.
Email: iljas_g@mail.ru
俄罗斯联邦, Ufa

M. Stolpovsky

Email: iljas_g@mail.ru
俄罗斯联邦, Ufa

E. Kochanova

Email: iljas_g@mail.ru
俄罗斯联邦, Ufa

参考

补充文件

附件文件

动作

1. JATS XML

下载

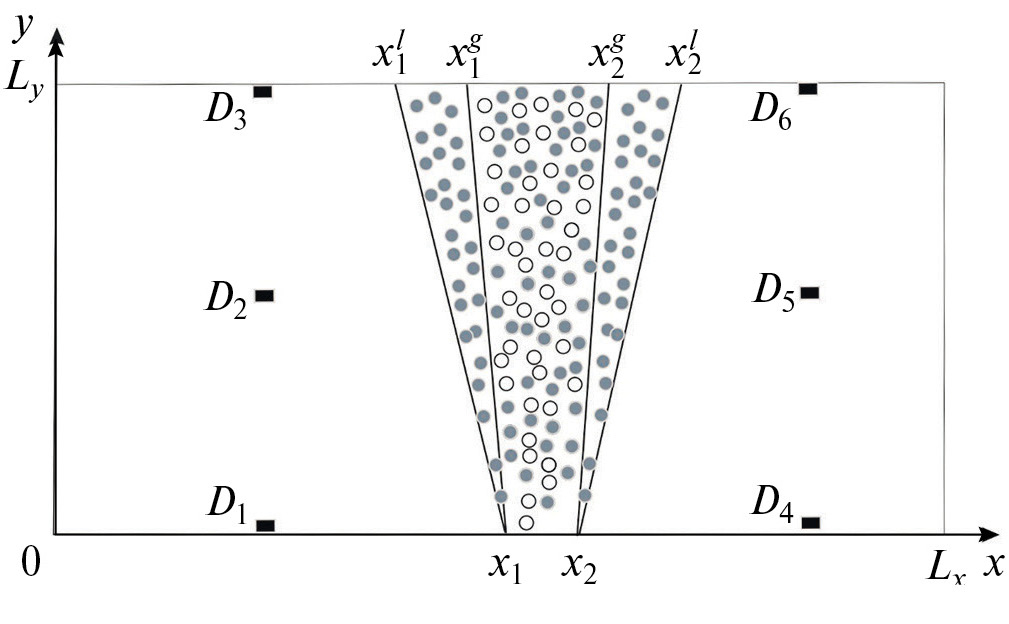

2. Fig. 1. Schematic representation of the computational domain. D1–D6 – pressure sensors

下载 (83KB)

索引源数据

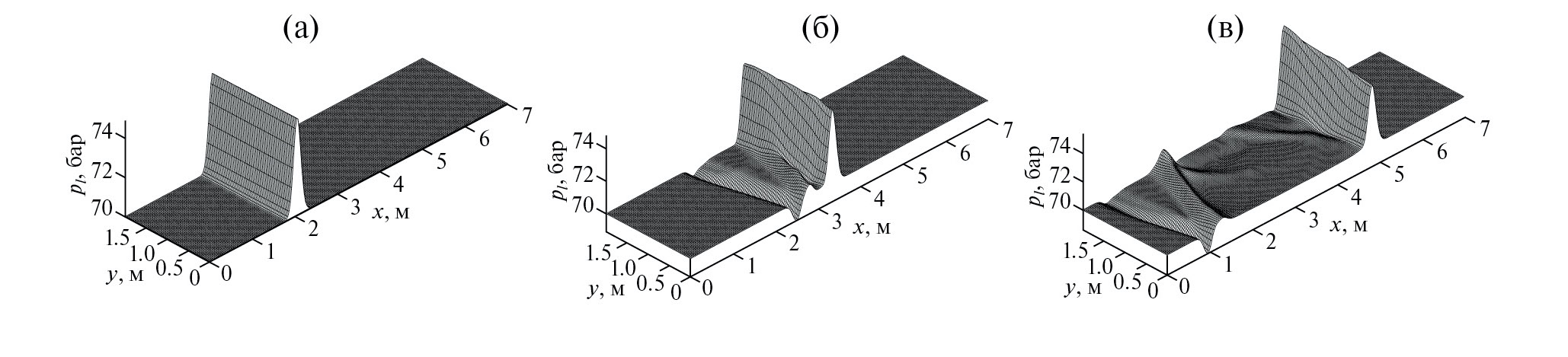

3. Fig. 2. Pressure diagrams at moments (a) - 1.62 ms, (b) - 2.5 ms, (c) – 3.5 ms. Calculation parameters: liquid – in the gas-liquid zone: a mixture of oil and water with volume contents ao0 = 0.75 and aw0 = 0.25, methane gas: ag0 = 0.001, a = 1.25 mm, x1 = 2.95 m, x2 = 3.05 m, x2l = 3.3 m, x1l = 2.7 m, x2g = 3.2 m, x1g = 2.8 m, ∆pl0 = 0.5 MPa, po00 = 830 kg/m3, pw00 = 1000 kg/m3,vo = 10-2 m2/s, vw = 10-6 m2/s, Co = 1225 m/s, Cw = 1500 m/s, pg00 = 50.19 kg/m3, cg = 2220 J/kg K, λg = 0.03 W/m K, T0 = 300 K, p0 = 7.0 MPa

下载 (166KB)

索引源数据

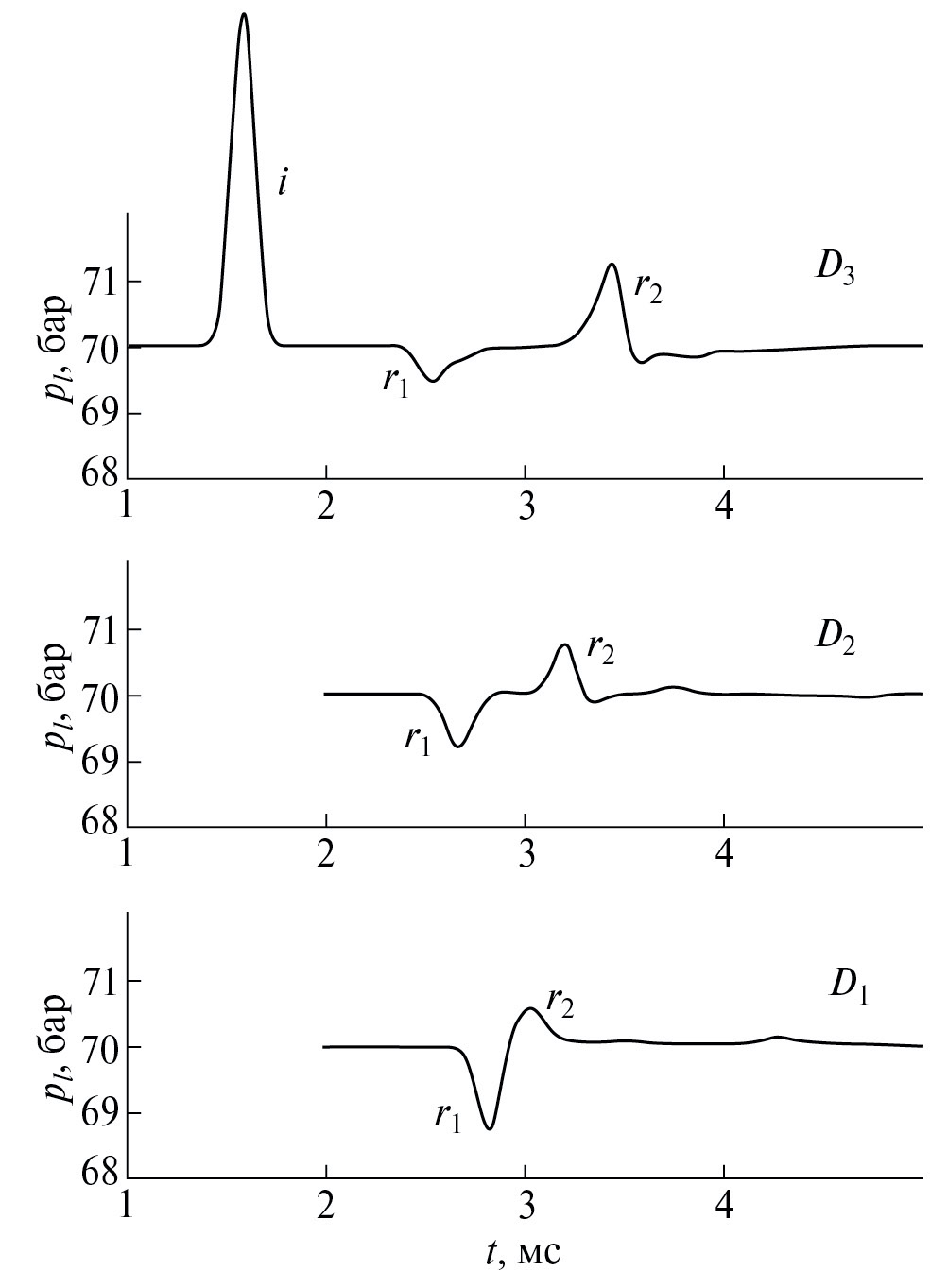

4. Fig. 3. Waveforms for sensors D3, D2, D1 having coordinates (2;2), (2;1) and (2;0) m, the letters r1 and r2 indicate the signals reflected from the boundaries “water–oil–water mixture-gas-liquid core” and “gas-liquid core-oil-water mixture- water.” All parameters are the same as for Fig. 2

下载 (93KB)

索引源数据

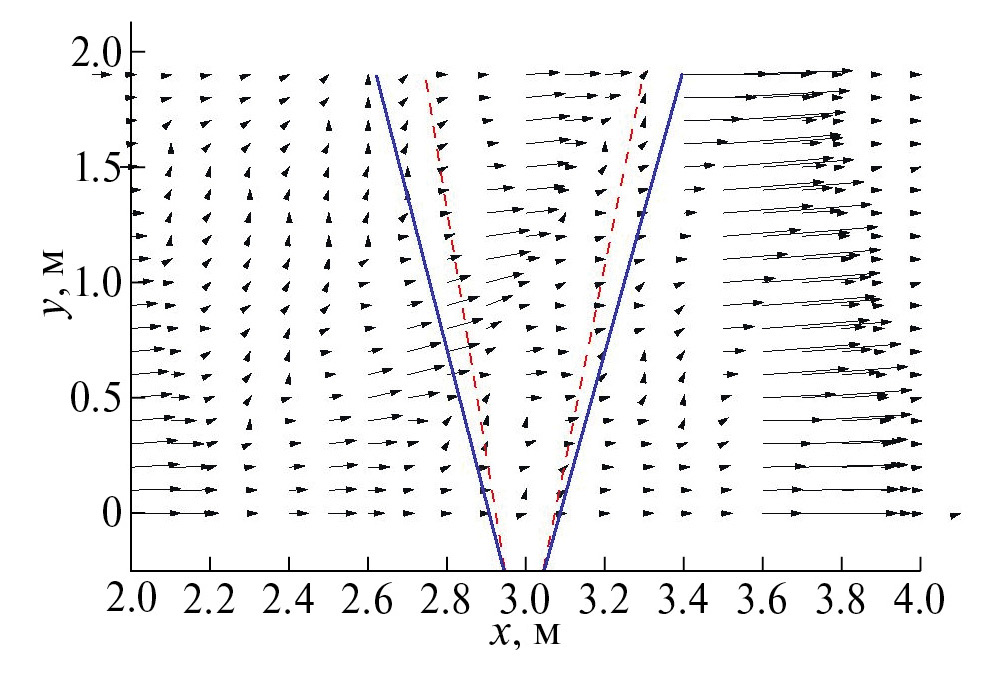

5. Fig. 4. Velocity field at 2.8 ms. The volume content of the gas is ag0 = 0.01.The other parameters are the same as in Fig. 2

下载 (163KB)

索引源数据

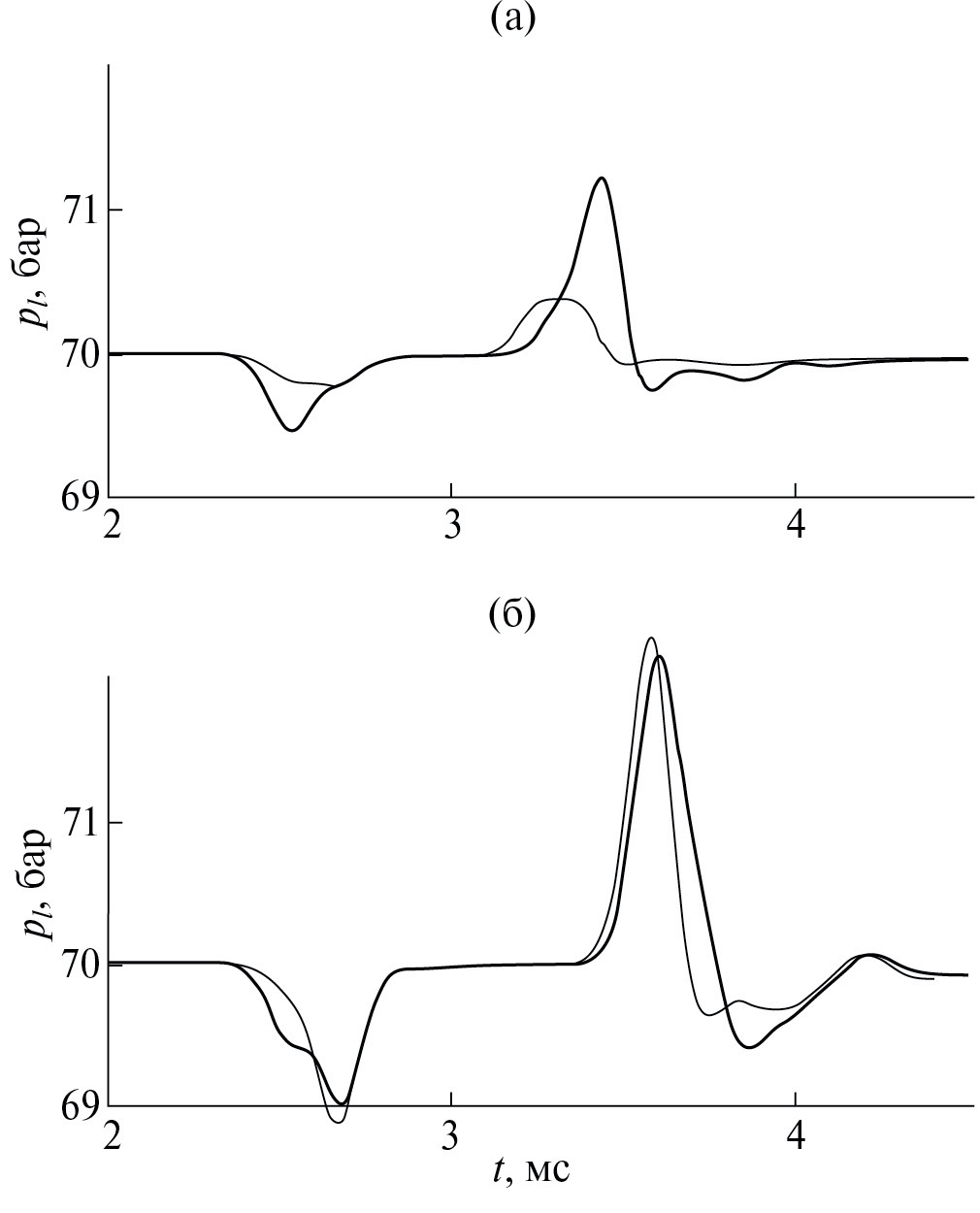

6. Fig. 5. Waveforms of reflected signals for the D3 sensor: bold lines correspond to the volume content of gas in the bubble core (a) – ag0 = 0.001 and (b) – ag0 = 0.01, thin lines correspond to the case of the absence of a bubble core in the jet (ag0 = 0). Volume content of oil and gas in the area of a multiphase jet: ao0 = 0.75, aw0 = 0.25. The other parameters are the same as in Fig. 2

下载 (90KB)

索引源数据

7. Fig. 6. The same as in Fig. 5. The bold line in both pictures corresponds to the case when the volume fraction of oil in the liquid phase of the bubble zone is ao0 = 0.75 (aw0 = 0.25), the thin one is ao0 = 0.25 (aw0 = 0.75). The volume content of the gas is (a) – ag0 = 0.001, (b) – ag0 = 0.01. The other parameters are the same as in Fig. 2

下载 (87KB)

索引源数据
