A New Structural Type of Bismuth(III) Dithiocarbamato-Chlorido Complexes: Preparation, Structural Organization, and Thermal Behavior of Binuclear Compounds [Bi2{S2CN(CH2)6}4(μ2-Cl)2] and [Bi2{S2CN(CH2)6}4(μ2-Cl)2]·2CH2Cl2

E. V. Novikova; Новикова Е. В.; K. L. Isakovskaya; Исаковская К. Л.; A. V. Ivanov; Иванов А. В.

doi:10.31857/S0044457X22601882

A New Structural Type of Bismuth(III) Dithiocarbamato-Chlorido Complexes: Preparation, Structural Organization, and Thermal Behavior of Binuclear Compounds [Bi2{S2CN(CH2)6}4(μ2-Cl)2] and [Bi2{S2CN(CH2)6}4(μ2-Cl)2]·2CH2Cl2

Authors: Novikova E.V.¹, Isakovskaya K.L.²^,3, Ivanov A.V.¹
Affiliations:
1. Institute of Geology and Nature Management, Far Eastern Branch, Russian Academy of Sciences
2. Nesmeyanov Institute of Organoelement Compounds, Russian Academy of Sciences
3. Mendeleev University of Chemical Technology of Russia
Issue: Vol 68, No 4 (2023)
Pages: 471-481
Section: КООРДИНАЦИОННЫЕ СОЕДИНЕНИЯ
URL: https://ogarev-online.ru/0044-457X/article/view/136320
DOI: https://doi.org/10.31857/S0044457X22601882
EDN: https://elibrary.ru/FLTIUR
ID: 136320

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

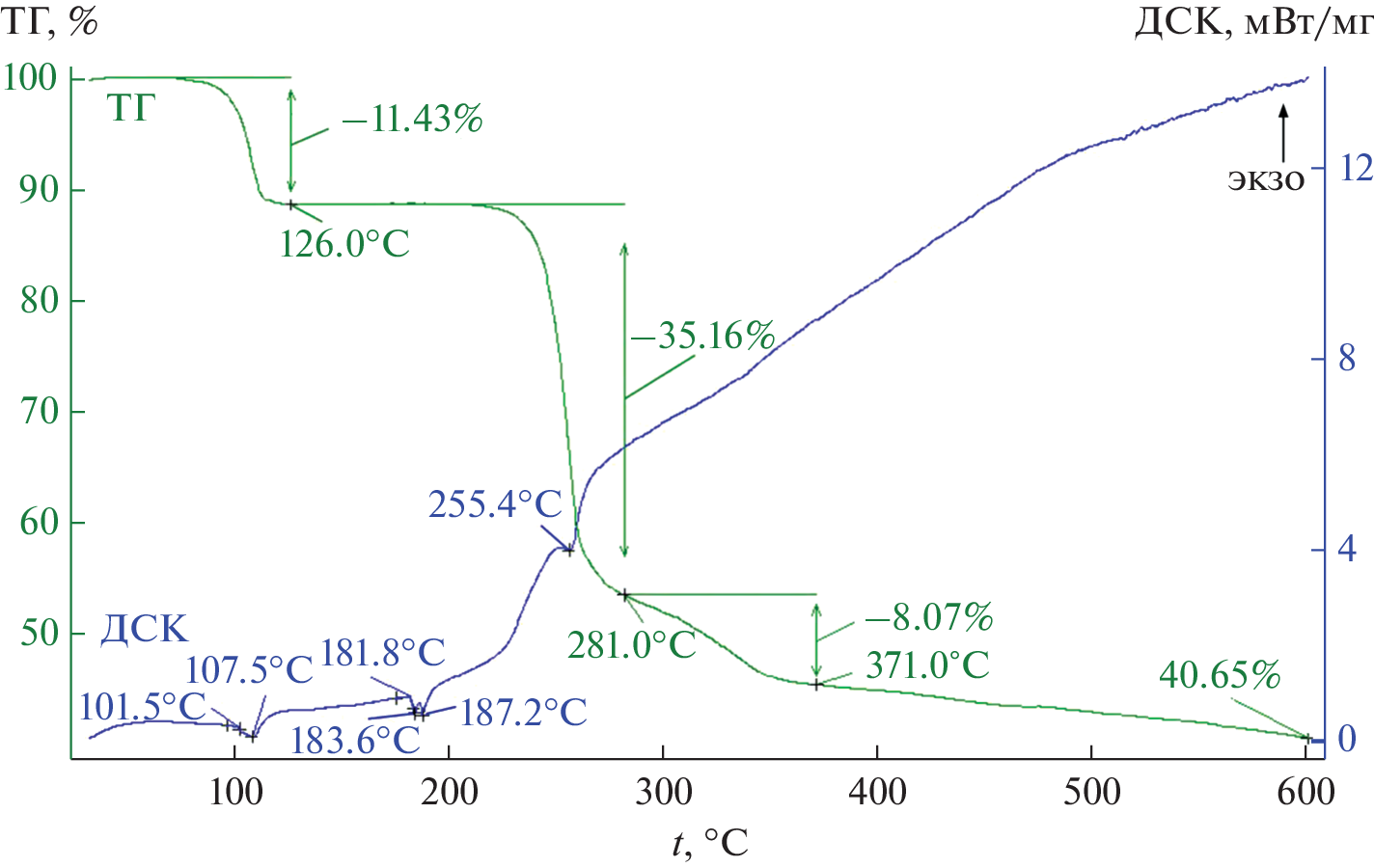

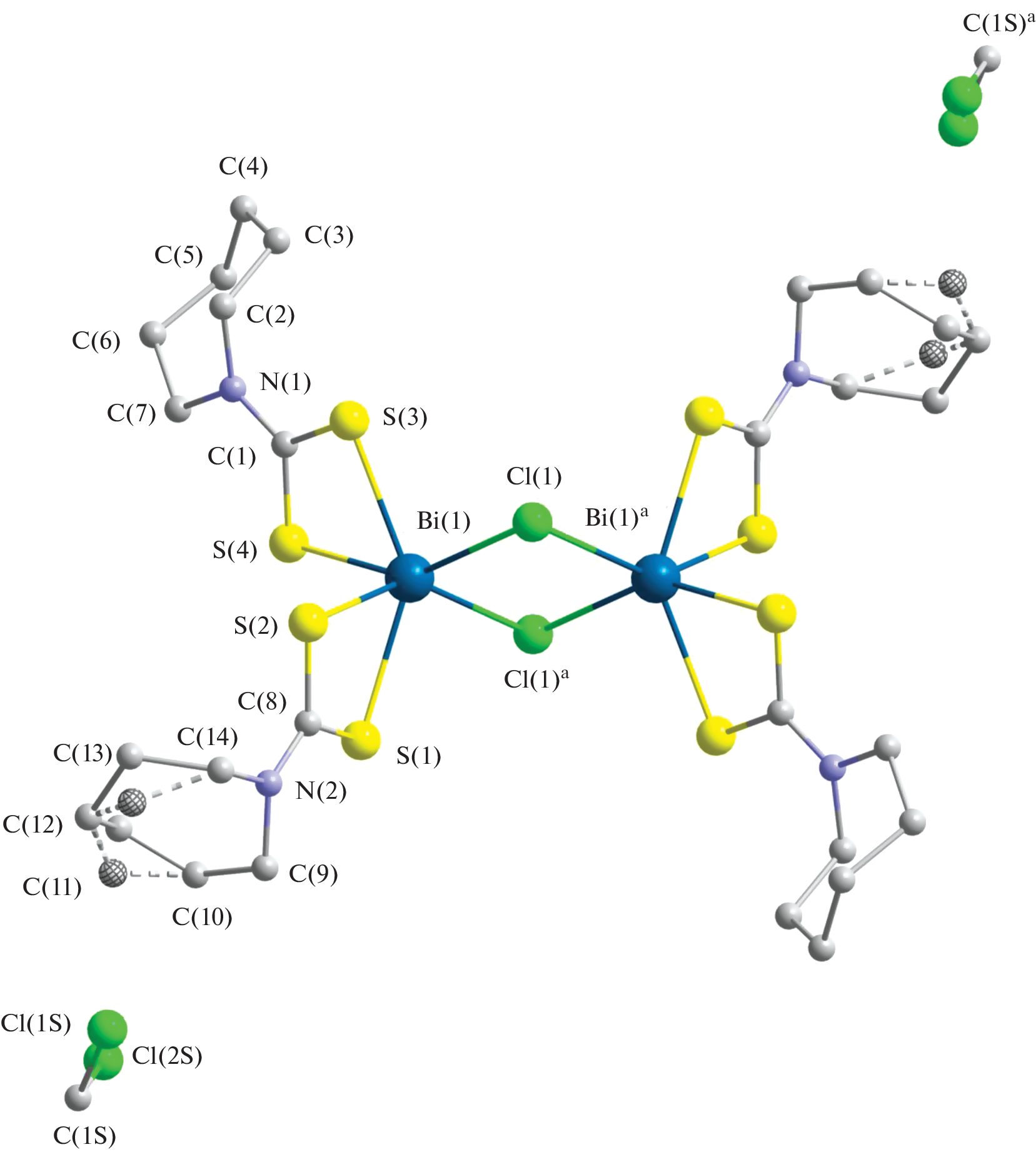

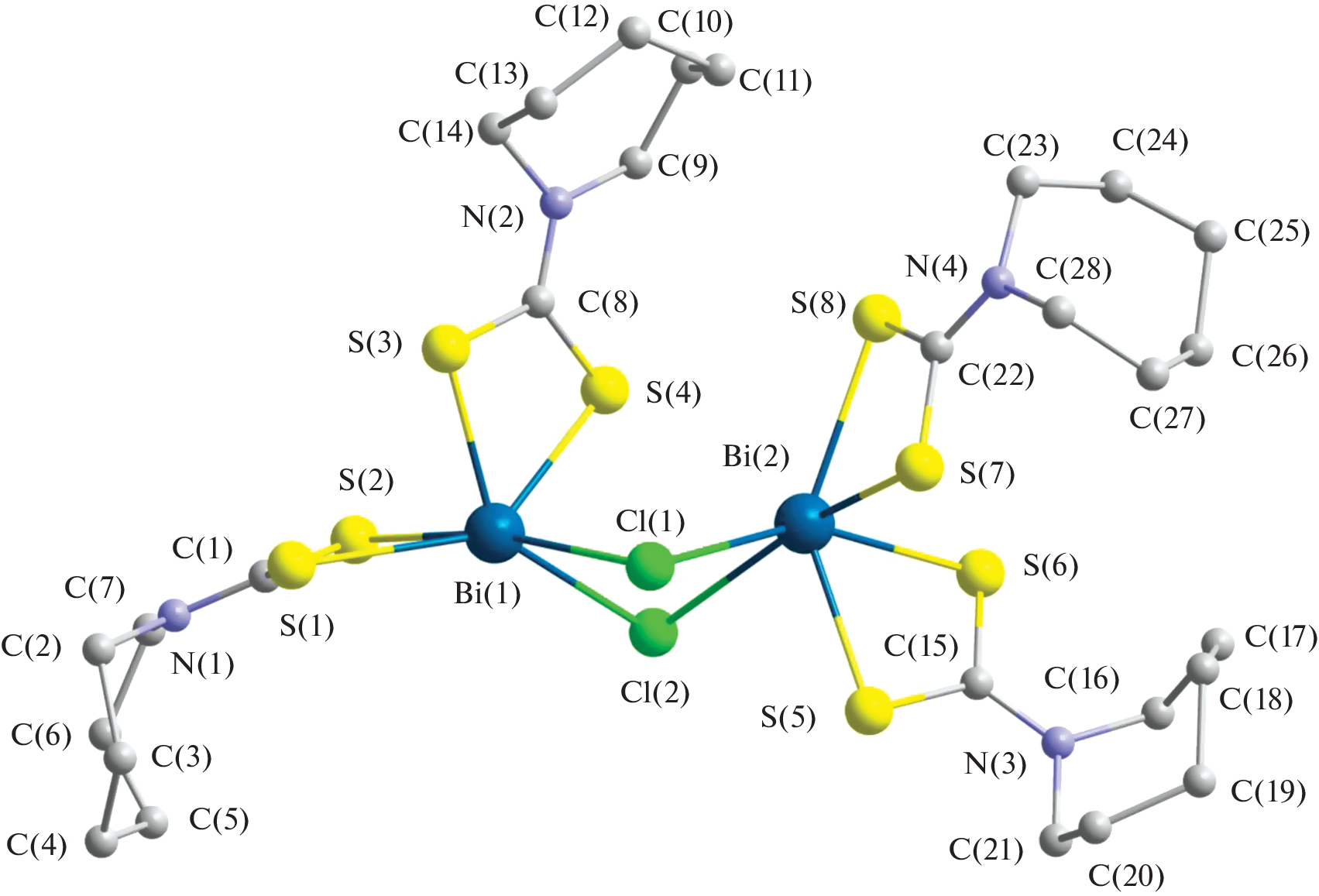

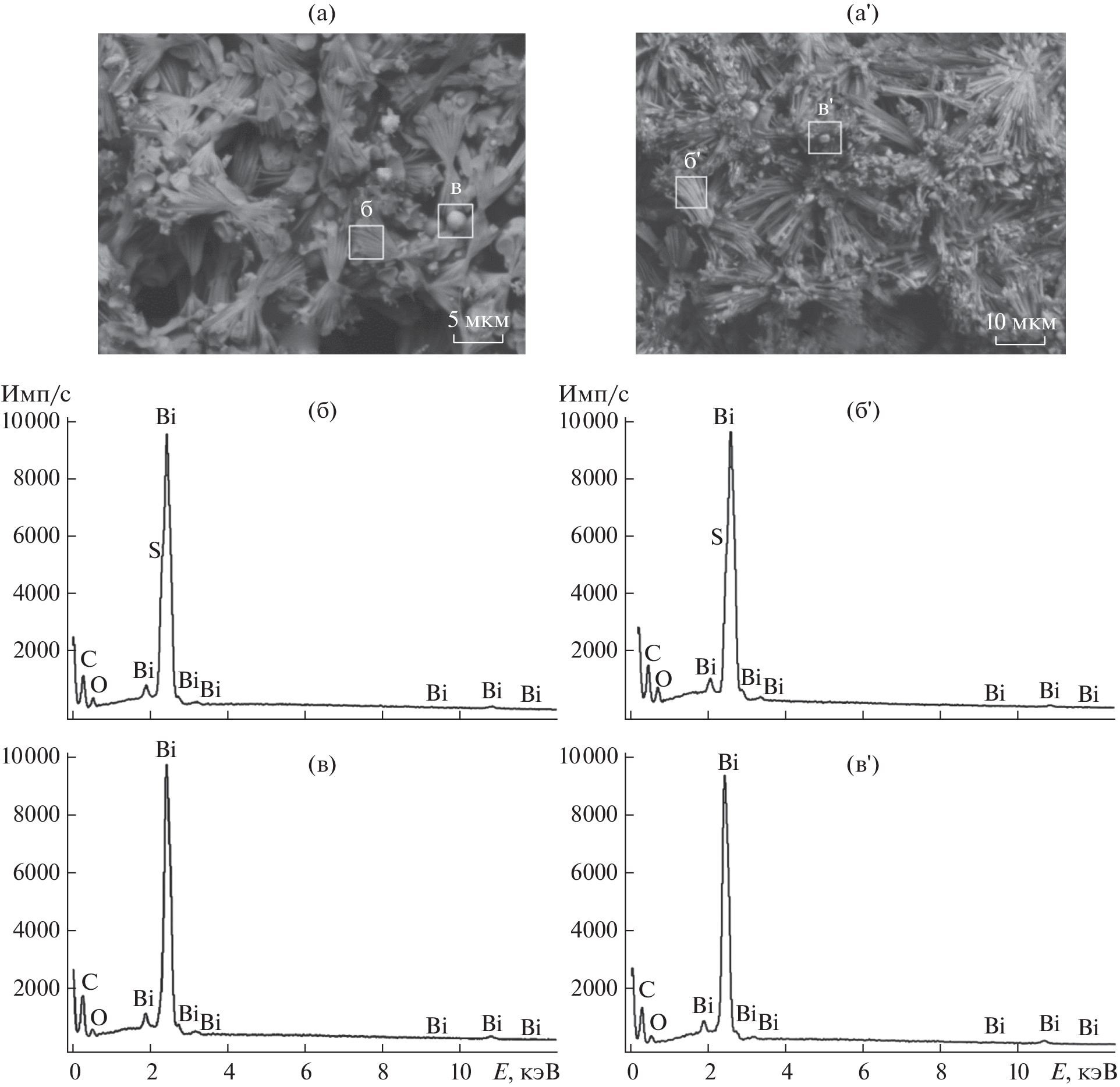

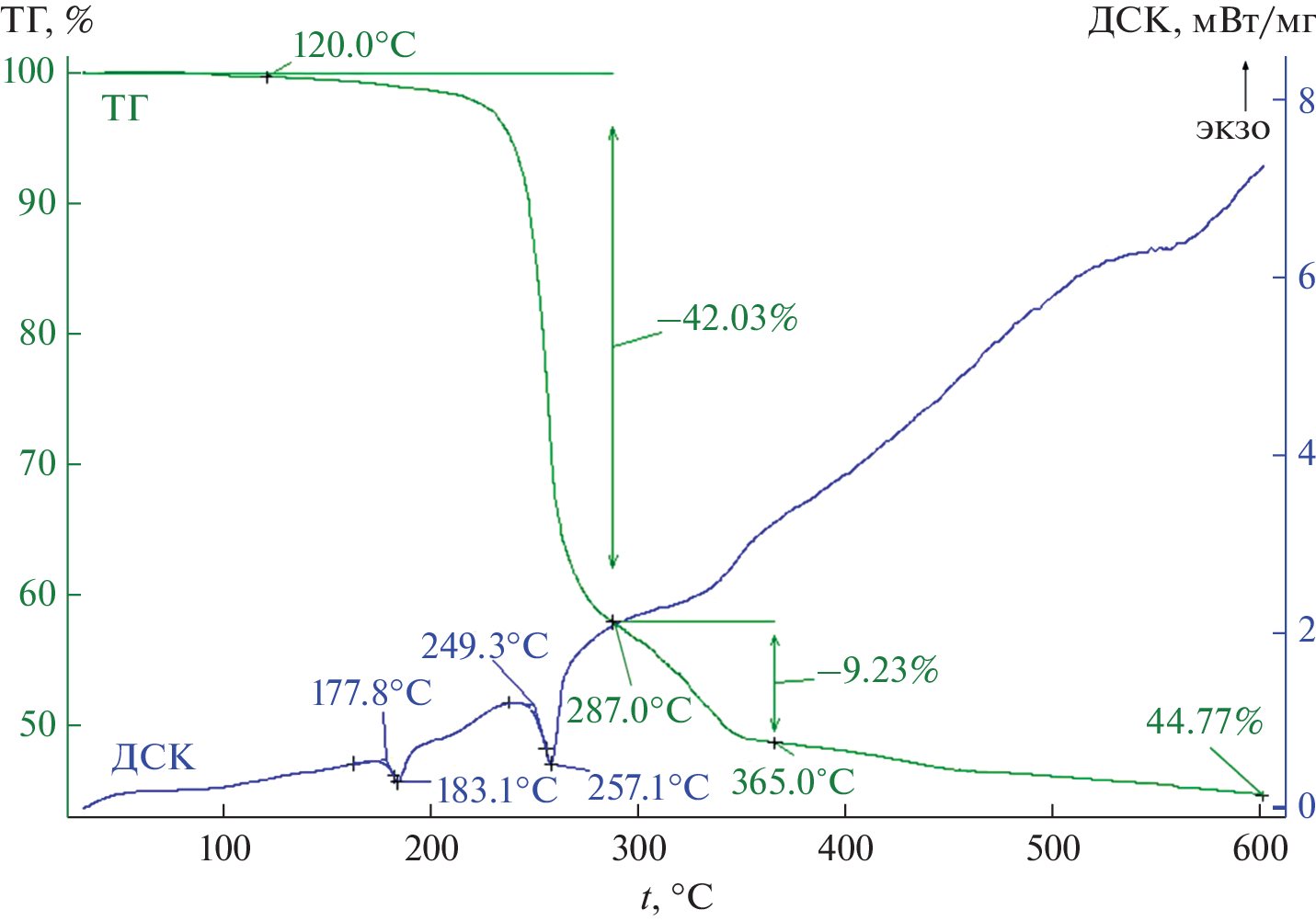

Heteroleptic compounds of bismuth(III) adopting a new binuclear structural type: hexamethylenedithiocarbamato(HmDtc)-chloride of [Bi2(S2CNHm)4(μ2-Cl)2] (I) and its solvated form [Bi2(S2CNHm)4(μ2-Cl)2]·2CH2Cl2 (II) have been isolated and studied by X-ray diffraction, IR spectroscopy, and simultaneous thermal analysis. Despite the identical chemical composition, the structure of binuclear molecules in I and II differs significantly. In the first case, the noncentrosymmetric molecule includes two nonequivalent moieties of [Bi(S2CNHm)2Cl], which are combined by μ2-Cl ligands to form the [Bi–(μ2-Cl)2–Bi] metallocycle in the butterfly conformation: Bi(1)–Bi(2) 4.0785(5) Å, Cl(1)–Cl(2) 3.936(2) Å. On the contrary, in the solvated form II, the complex is centrosymmetric and four-membered [Bi2Cl2] ring is stabilized in a rhombic configuration: Bi(1)–Bi(1)a 3.9592(9) Å and Cl(1)–Cl(1)a 4.540(4) Å. According to the microprobe method, the main residual substance after the thermolysis of the complexes is microcrystalline Bi2S3 with inclusions of metallic bismuth particles.

Keywords

bismuth(III) dithiocarbamato-chlorido complexes, binuclear molecular structures, IR spectroscopy, thermal transformations of substances

References

Koh Y.W., Lai C.S., Du A.Y. et al. // Chem. Mater. 2003. V. 15. № 24. P. 4544. https://doi.org/10.1021/cm021813k
Ozturk I.I., Banti C.N., Kourkoumelis N. et al. // Polyhedron. 2014. V. 67. P. 89. https://doi.org/10.1016/j.poly.2013.08.052
Jamaluddin N.A., Baba I., Halim S.N.A., Tiekink E.R.T. // Z. Kristallogr. NCS. 2015. V. 230. № 3. P. 239. https://doi.org/10.1515/ncrs-2015-0008
Новикова Е.В., Иванов А.В., Егорова И.В. и др. // Коорд. химия. 2019. Т. 45. № 10. С. 599.
Teske C.L., Terraschke H., Mangelsen S., Bensch W. // Z. Naturforsch. 2022. V. 77. № 4–5. P. 203. https://doi.org/10.1515/znb-2021-0176
Новикова Е.В., Исаковская К.Л., Анцуткин О.Н., Иванов А.В. // Коорд. химия. 2021. Т. 47. № 1. С. 48.
Bharadwaj P.K., Lee A.M., Skelton B.W. et al. // Aust. J. Chem. 1994. V. 47. № 2. P. 405. https://doi.org/10.1071/CH9940405
Raston C.L., Rawbottom G.L., White A.H. // Dalton Trans. 1981. № 6. P. 1379. https://doi.org/10.1039/DT9810001379
Новикова Е.В., Заева А.С., Денисов Г.Л. и др. // Журн. неорган. химии. 2022. Т. 67. № 1. С. 103.
Иванов А.В., Конзелко А.А., Герасименко А.В. и др. // Журн. неорган. химии. 2005. Т. 50. № 11. С. 1827.
Бырько В.М. Дитиокарбаматы. М.: Наука, 1984. 341 с.
Sheldrick G.M. // Acta Crystallogr., Sect. A. 2015. V. 71. № 1. P. 3. https://doi.org/10.1107/S2053273314026370
Dolomanov O.V., Bourhis L.J., Gildea R.J. et al. // J. Appl. Crystallogr. 2009. V. 42. № 2. P. 339. https://doi.org/10.1107/S0021889808042726
Yin H.D., Li F., Wang D. // J. Coord. Chem. 2007. V. 60. № 11. P. 1133. https://doi.org/10.1080/00958970601008846
Казицына Л.A., Куплетская Н.Б. Применение УФ-, ИК-, ЯМР- и масс-спектроскопии в органической химии. М.: Изд-во Моск. ун-та, 1979. 240 с.
Корнеева Е.В., Новикова Е.В., Лосева О.В. и др. // Коорд. химия. 2021. Т. 47. № 11. С. 707.
Иванов А.В., Ивахненко Е.В., Герасименко А.В., Форшлинг В. // Журн. неорган. химии. 2003. Т. 48. № 1. С. 52.
Гремлих Г.У. Язык спектров. Введение в интерпретацию спектров органических соединений. М.: ООО “Брукер Оптик”, 2002. 93 с.
Тарасевич Б.Н. Основы ИК спектроскопии с преобразованием Фурье. Подготовка проб в ИК спектроскопии. M.: МГУ, 2012. 22 с.
Bocian D.F., Pickett H.M., Rounds T.C., Strauss H.L. // J. Am. Chem. Soc. 1975. V. 97. № 4. P. 687. https://doi.org/10.1134/S0036023622010077
Boessenkool I.K., Boeyens J.C.A. // J. Cryst. Mol. Struct. 1980. V. 10. № 1–2. P. 11. https://doi.org/10.1007/BF01209549
Entrena A., Campos J., Gomez J.A. et al. // J. Org. Chem. 1997. V. 62. № 2. P. 337. https://doi.org/10.1021/jo951950j
Arda M., Ozturk I.I., Banti C.N. et al. // RSC Adv. 2016. V. 6. P. 29026. https://doi.org/10.1039/C6RA01181K
Abrahams B.F., Hoskins B.F., Winter G. // Acta Crystallogr. C. 1990. V. 46. № 3. P. 391. https://doi.org/10.1107/S0108270189007420
Mensforth E.J., Hill M.R., Batten S.R. // Inorg. Chim. Acta. 2013. V. 403. P. 9. https://doi.org/10.1016/j.ica.2013.02.019
Бацанов С.С. // Неорган. материалы. 2001. Т. 37. № 9. С. 1031.
Hu S.-Z., Zhou Z.-H., Robertson B.E. // Z. Kristallogr. 2009. V. 224. № 8. P. 375. https://doi.org/10.1524/zkri.2009.1158
Alvarez S. // Dalton Trans. 2013. V. 42. № 24. P. 8617. https://doi.org/10.1039/C3DT50599E
Ge Z.-H., Qin P., He D. et al. // ACS Appl. Mater. Interfaces 2017. V. 9. № 5. P. 4828. https://doi.org/10.1021/acsami.6b14803
