STABILIZATION OF PICKERING EMULSIONS WITH HETEROAGGREGATES OF DETONATION NANODIAMONDS AND SIO2 NANOPARTICLES

K. V. PALAMARCHUK; Паламарчук К. В.; N. P. PALAMARCHUK; Паламарчук Н. П.; T. V. BUKREEVA; Букреева Т. В.

doi:10.31857/S0023291223600347

STABILIZATION OF PICKERING EMULSIONS WITH HETEROAGGREGATES OF DETONATION NANODIAMONDS AND SIO2 NANOPARTICLES

Authors: PALAMARCHUK K.V.¹, PALAMARCHUK N.P.¹^,2, BUKREEVA T.V.³
Affiliations:
1. National Research Centre “Kurchatov Institute”, Moscow, Russia
2. Federal State Autonomous Educational Institution of Higher Education “Moscow Institute of Physics and Technology (National Research University),” Dolgoprudnyi, Moscow oblast, Russia
3. Shubnikov Institute of Crystallography, Federal Research Center “Crystallography and Photonics,” Russian Academy of Sciences, Moscow, Russia
Issue: Vol 85, No 4 (2023)
Pages: 453-462
Section: Articles
Submitted: 16.10.2023
Published: 01.07.2023
URL: https://ogarev-online.ru/0023-2912/article/view/137235
DOI: https://doi.org/10.31857/S0023291223600347
EDN: https://elibrary.ru/ENTBIM
ID: 137235

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

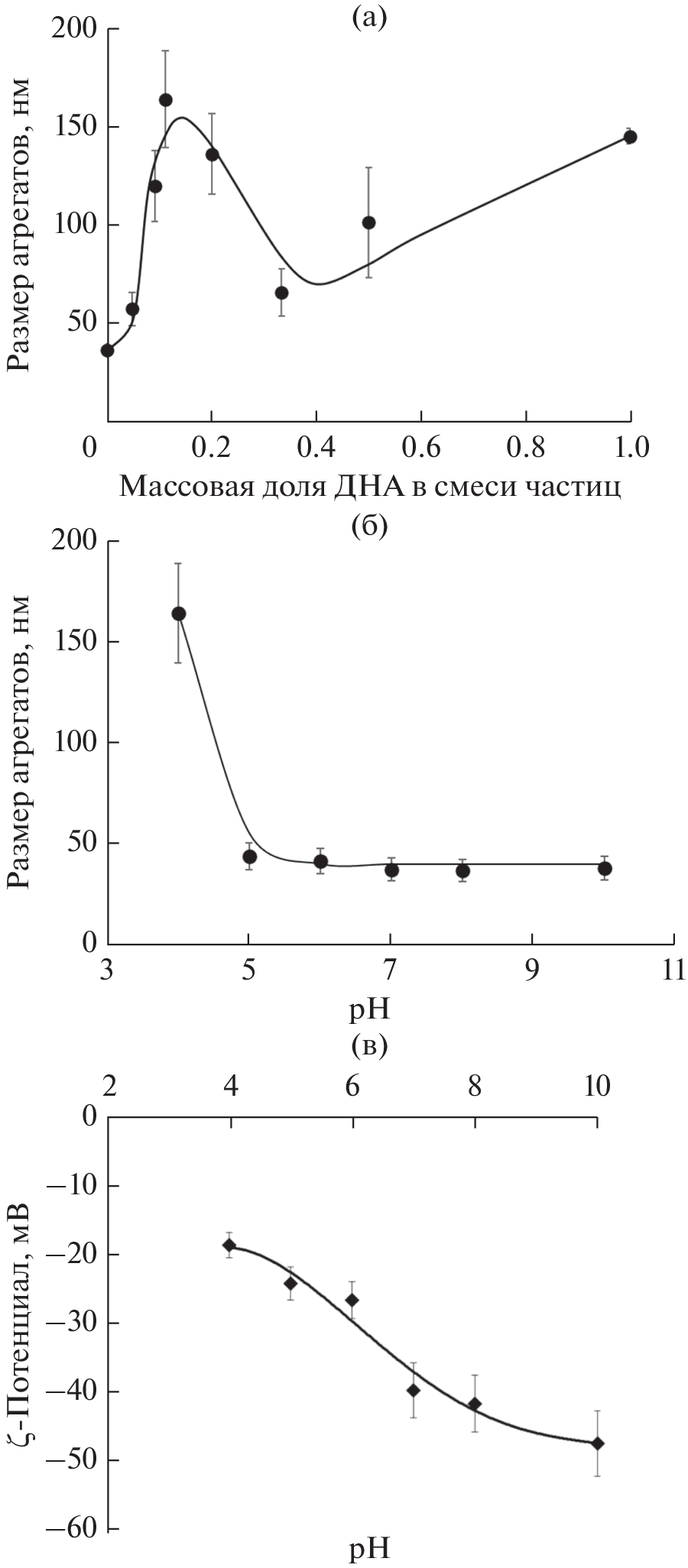

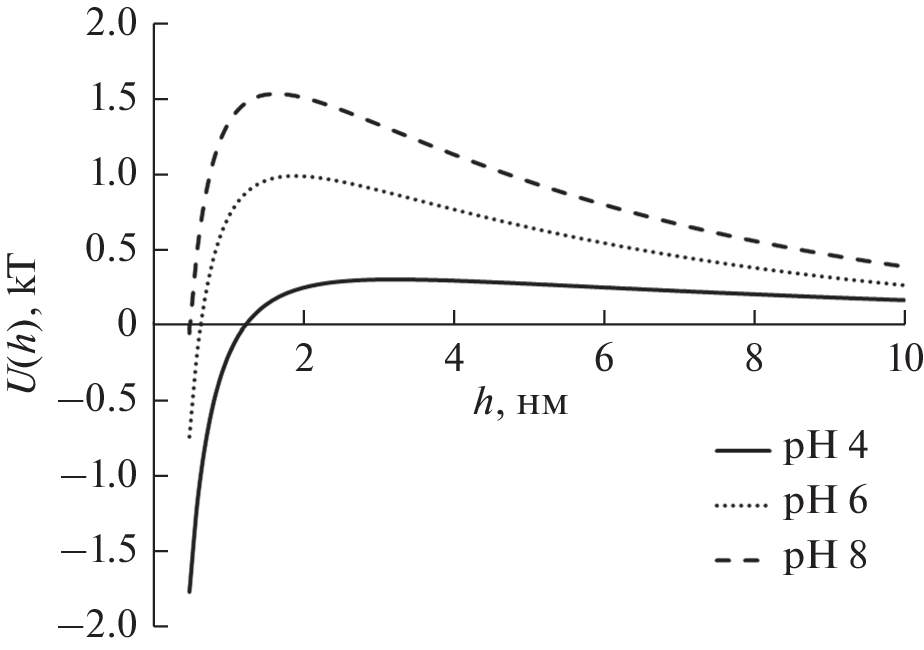

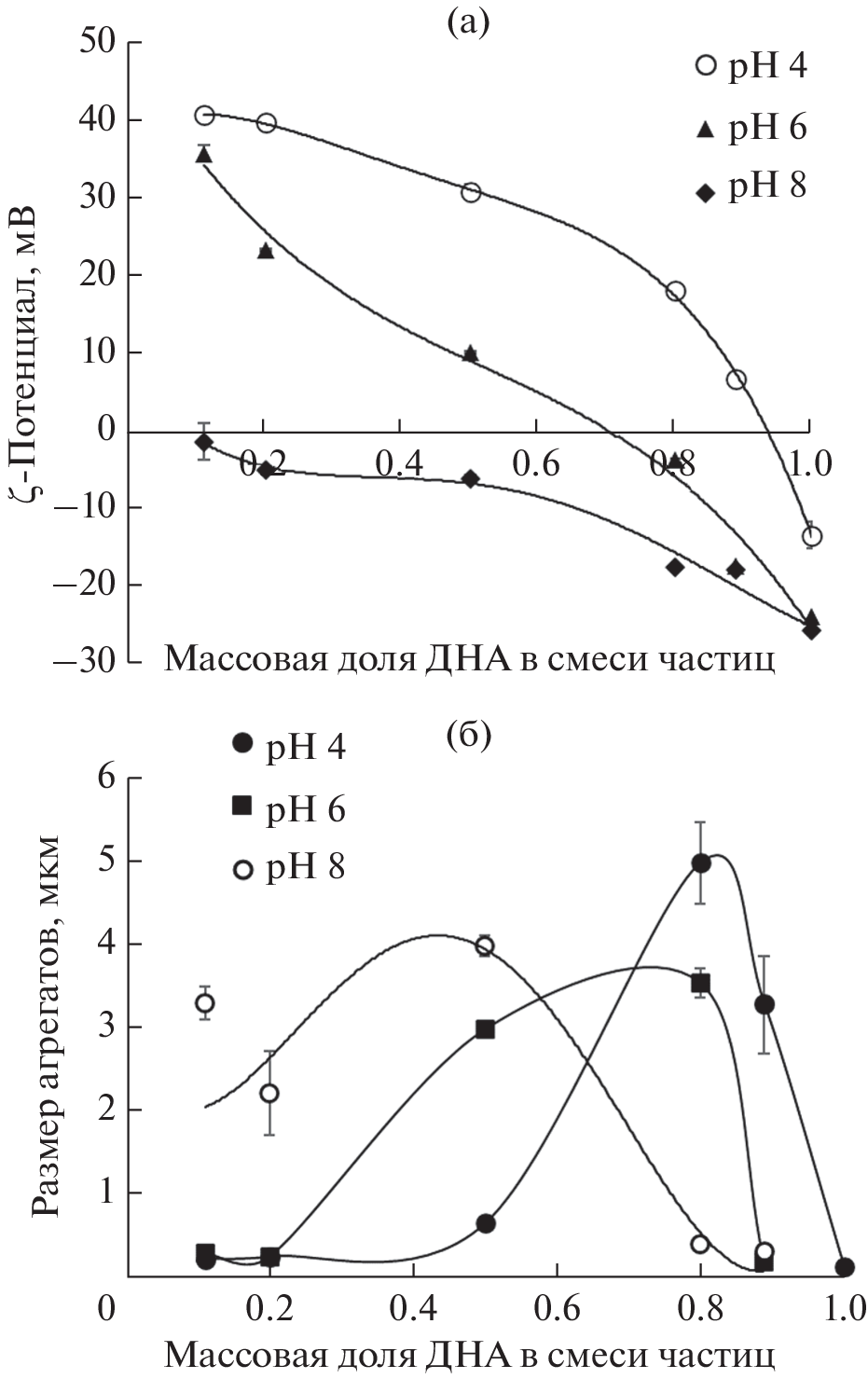

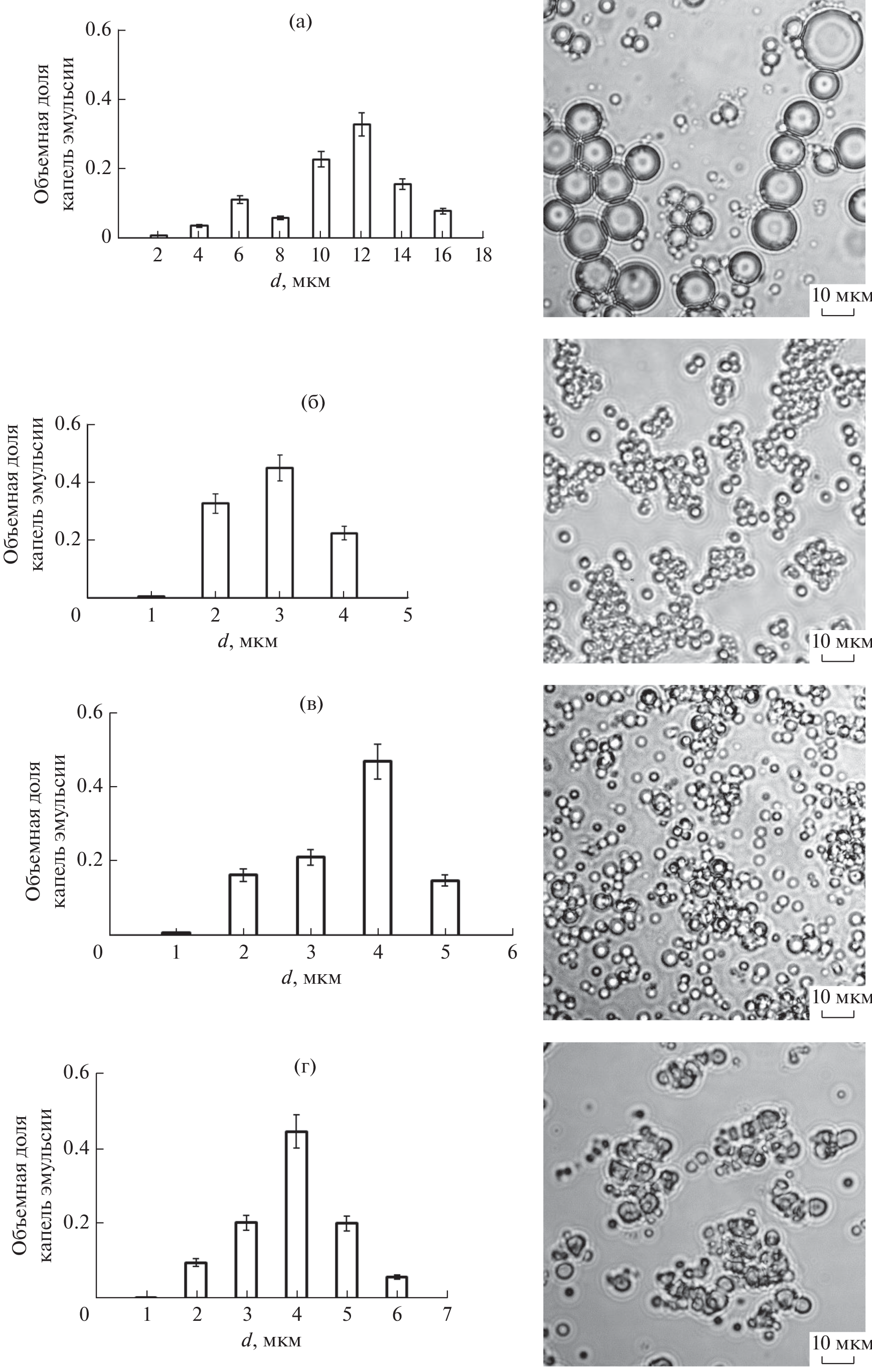

The stabilization of Pickering emulsions with mixtures of similarly and oppositely charged detonation nanodiamonds and silica nanoparticles has been studied. Dynamic light scattering has been employed to study the influence of pH and the mass ratio of the particles on the sizes and ζ-potentials of aggregates. The formation of heteroaggregates from mixtures of similarly charged nanoparticles and the efficient stabilization of dodecane droplets have been shown and theoretically substantiated. Submicron droplets of Pickering emulsion stabilized with the mixtures of oppositely charged silica nanoparticles and detonation nanodiamonds
have been obtained.

References

Ramsden W. Separation of solids in the surface-layers of solutions and “suspensions” // Proc. R. Soc. London. 1903. V. 72. P. 156–164. https://doi.org/10.1098/rspl.1903.0034
Pickering S.U. CXCVI.—Emulsions // J. Chem. Soc. Trans. 1907. V. 91. P. 2001–2021. https://doi.org/10.1039/CT9079102001
Berton-Carabin C.C., Schroen K. Pickering emulsions for food applications: Background, trends, and challenges // Annu. Rev. Food Sci. Technol. 2015. V. 6. P. 263–297. https://doi.org/10.1146/annurev-food-081114-110822
Guzman E., Ortega F., Rubio R.G. Pickering emulsions: A novel tool for cosmetic formu-lators // Cosmetics. 2022. V. 9. № 4. P. 68. https://doi.org/10.3390/cosmetics9040068
Marto J., Ascenso A., Simoes S., Almeida A.J., Ribeiro H.M. Pickering emulsions: Challenges and opportunities in topical delivery // Expert Opin. Drug Deliv. 2016. V. 13. № 8. P. 1093-1107. https://doi.org/10.1080/17425247.2016.1182489
Albert C., Beladjine M., Tsapis N., Fattal E., Agnely F., Huang N. Pickering emulsions: Preparation processes, key parameters governing their properties and potential for pharmaceutical applications // J. Control. Release 2019. V. 309. P. 302–332. https://doi.org/10.1016/j.jconrel.2019.07.003
Rodriguez A.M.B., Binks B.P. Capsules from Pickering emulsion templates // Curr. Opin. Colloid Interface Sci. 2019. V. 44. P. 107–129. https://doi.org/10.1016/j.cocis.2019.09.006
Вуль А.Я., Шендерова О.А. Детонационные наноалмазы. Технология, структура, свойства и применения. СПб: ФТИ им. А.Ф. Иоффе, 2016.
Turcheniuk K., Mochalin V.N. Biomedical applications of nanodiamond (Review) // Nanotechnology. 2017. V. 28. № 25. P. 252001. https://doi.org/10.1088/1361-6528/aa6ae4
Maas M., Bollhorst T., Zare R.N., Rezwan K. Diamondosomes: Submicron colloidosomes with nanodiamond shells // Part. Syst. Charact. 2014. V. 31. № 10. P. 1067–1071. https://doi.org/10.1002/ppsc.201400022
Farias B.V., Brown D., Hearn A., Nunn N., Shenderova O., Khan S.A. Nanodiamond-stabilized Pickering emulsions: Microstructure and rheology // J. Colloid Interface Sci. 2020. V. 580. № 15. P. 180–191. https://doi.org/10.1016/j.jcis.2020.07.030
Huang Z., Jurewicz I., Munoz E., Garriga R., Keddie J.L. Pickering emulsions stabilized by carboxylated nanodiamonds over a broad pH range // J. Colloid Interface Sci. 2022. V. 608. P. 2025–2038. https://doi.org/10.1016/j.jcis.2021.10.130
Palamarchuk K.V., Borodina T.N., Kostenko A.V., Chesnokov Y.M., Kamyshinsky R.A., Palamarchuk N.P., Yudina E.B., Nikolskaya E.D., Yabbarov N.G., Mollaeva M.R., Bukreeva T.V. Development of submicrocapsules based on co-assembled like-charged silica nanoparticles and detonation nanodiamonds and polyelectrolyte layers // Pharmaceutics. 2022. V. 14. № 3. P. 575. https://doi.org/10.3390/pharmaceutics14030575
Binks B.P., Liu W., Rodrigues J.A. Novel stabilization of emulsions via the heteroaggregation of nanoparticles // Langmuir. 2008. V. 24. № 9. P. 4443–4446. https://doi.org/10.1021/la800084d
Королева М.Ю., Быданов Д.А., Паламарчук К.В., Юртов Е.В. Стабилизация прямых эмульсий наночастицами SiO2 и Fe3O4 // Коллоидн. журн. 2018. Т. 80. № 3. С. 300–307. https://doi.org/10.7868/S0023291218030060
Palamarchuk K.V., Vantsyan M.A., Kamyshinsky R.A., González-Alfaro Y., Bukreeva T.V. Multifunctional capsules with oil core and shells of SiO2 nanoparticles, nanodiamonds and polyelectrolyte layers with Fe3O4 nanoparticles // Int. J. Nanotechnol. 2019. V.16. № 6–10. P. 510–521. https://doi.org/10.1504/IJNT.2019.106622
Derjaguin B.V., Landau L. Theory of the stability of strongly charged lyophobic sols and of the adhesion of strongly charged particles in solution of electrolytes // Acta Physicochim. URSS. 1941. V. 14. P. 633–662.
Verwey E.J.W., Overbeek J.T.G. Theory of the Stability of Lyophobic Colloids. Amsterdam: Elsevier, 1948.
Petosa A.R., Jaisi D.P., Quevedo I.R., Elimelech M., Tufenkji N. Aggregation and deposition of engineered nanomaterials in aquatic environments: Role of physicochemical interactions environ // Sci. Technol. 2010. V. 44. № 17. P. 6532–6549. https://doi.org/10.1021/es100598h
Зонтаг Г., Штренге К. Коагуляция и устойчивость дисперсных систем. Ленинград: Химия, 1973.
Israelachvili J.N. Intermolecular and Surface Forces. California: Academic Press, 2011.
Visser J. On Hamaker constants: A comparison between Hamaker constants and Lifshitz-van der Waals constants // Advan. Colloid Interface Sci. 1972. V. 3. № 4. P. 331–363. https://doi.org/10.1016/0001-8686(72)85001-2
Костин А.С., Кольцова Э.М. К вопросу о механизме агрегации наночастиц диоксида титана // Фундаментальные исследования. 2012. № 6. С. 647–651.
Facal P.M., Cheng C., Sedev R., Stocco A., Binks B.P., Wang D. Van der Waals Emulsions: Emulsions stabilized by surface-inactive, hydrophilic particles via van der Waals attraction // Angew. Chem. Int. Ed. 2018. V. 57. № 30. P. 9510–9514. https://doi.org/10.1002/anie.201805410
Binks B.P. Particles as surfactants — Similarities and differences // Current Opinion in Colloid & Interface Science. 2002. V. 7. № 1−2. P. 21–41. https://doi.org/10.1016/S1359-0294(02)00008-0
Pawar A.B., Caggioni M., Ergun R., Hartel R.W., Spicer P.T. Arrested coalescence in Pickering emulsions // Soft Matter. 2011. V. 7. P. 7710–7716. https://doi.org/10.1039/c1sm05457k
