Autooscillations of a Multlink Aerodynamic Pendulum

A. P. Golub; Голуб А. П.; L. A. Klimina; Климина Л. А.; B. Ya. Lokshin; Локшин Б. Я.; Yu. D. Selyutskiy; Селюцкий Ю. Д.

doi:10.31857/S0002338823020087

Autooscillations of a Multlink Aerodynamic Pendulum

Authors: Golub A.P.¹, Klimina L.A.¹, Lokshin B.Y.¹, Selyutskiy Y.D.¹
Affiliations:
1. Institute of Mechanics, Lomonosov Moscow State University, 119192, Moscow, Russia
Issue: No 2 (2023)
Pages: 140-150
Section: МАТЕМАТИЧЕСКОЕ МОДЕЛИРОВАНИЕ
URL: https://ogarev-online.ru/0002-3388/article/view/136880
DOI: https://doi.org/10.31857/S0002338823020087
EDN: https://elibrary.ru/JEFVCC
ID: 136880

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

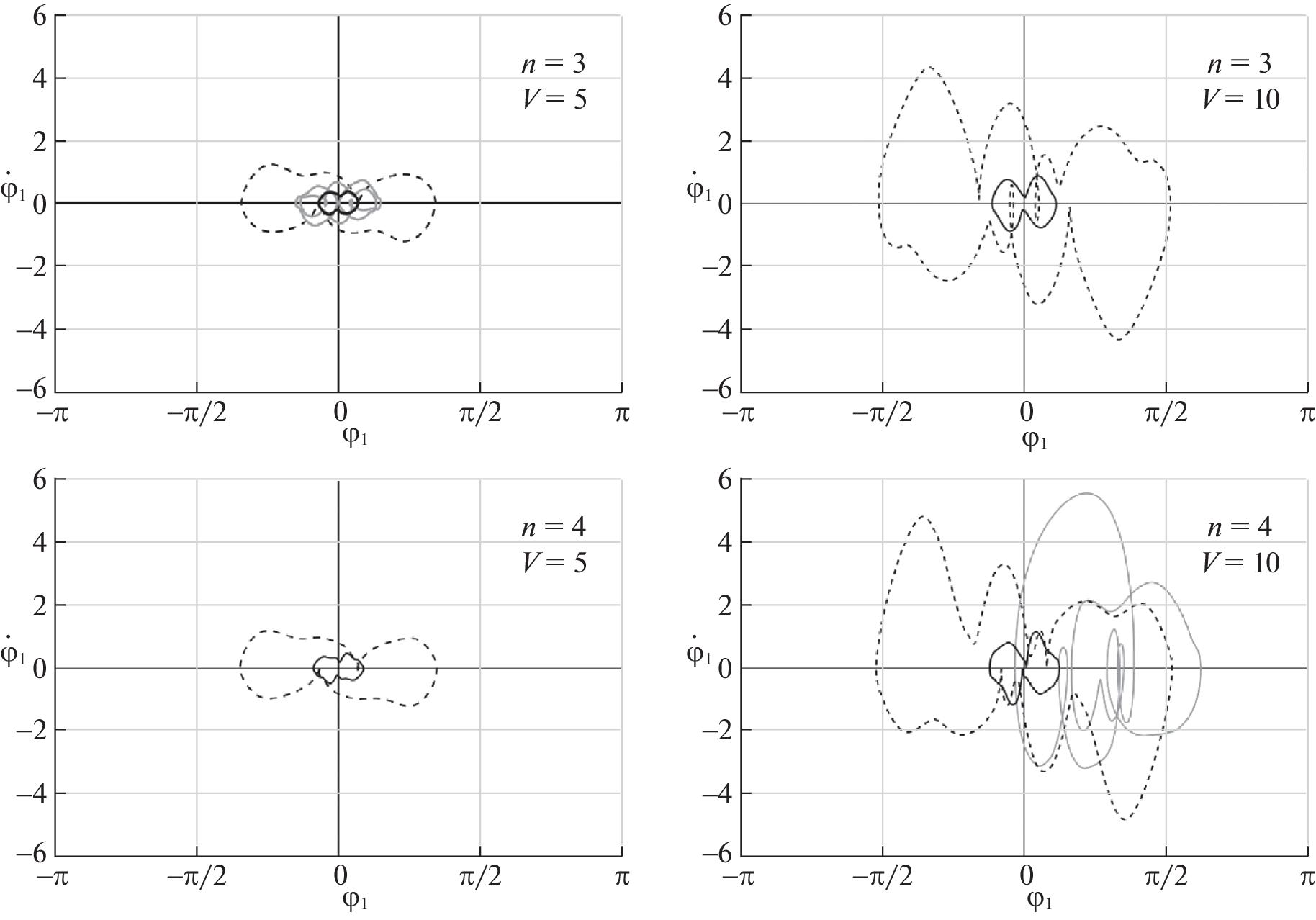

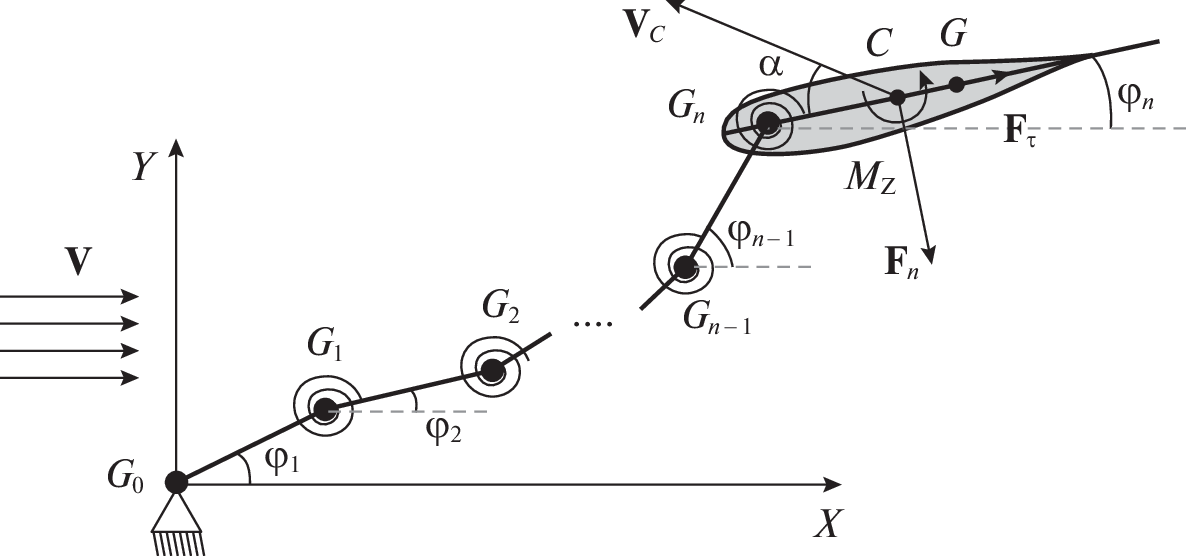

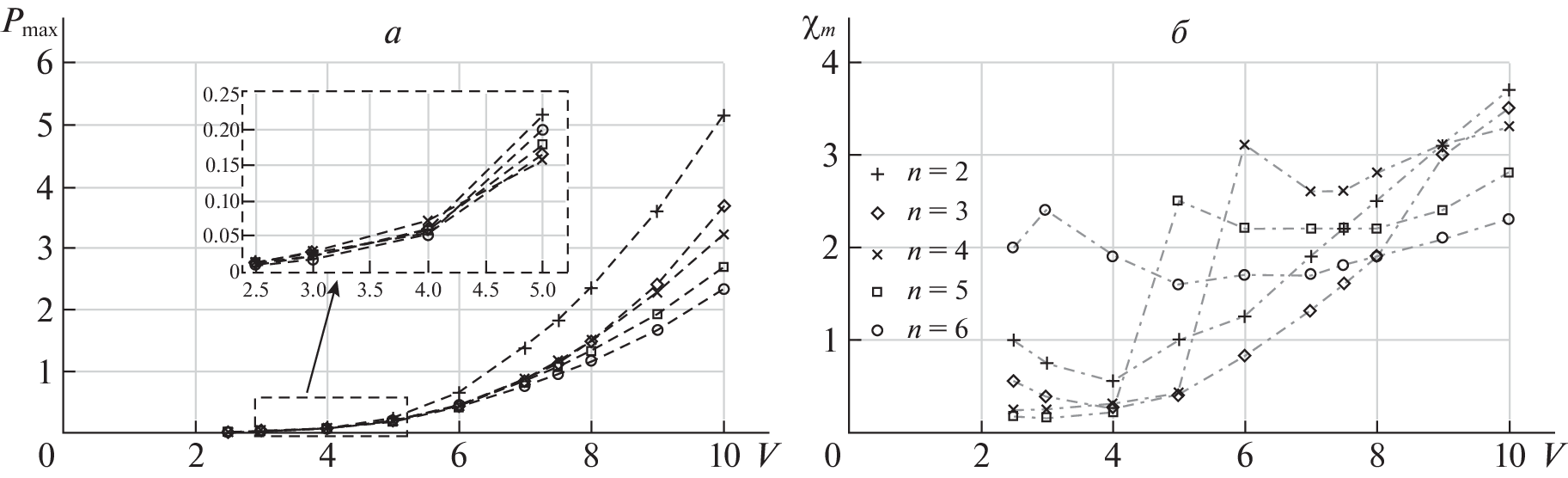

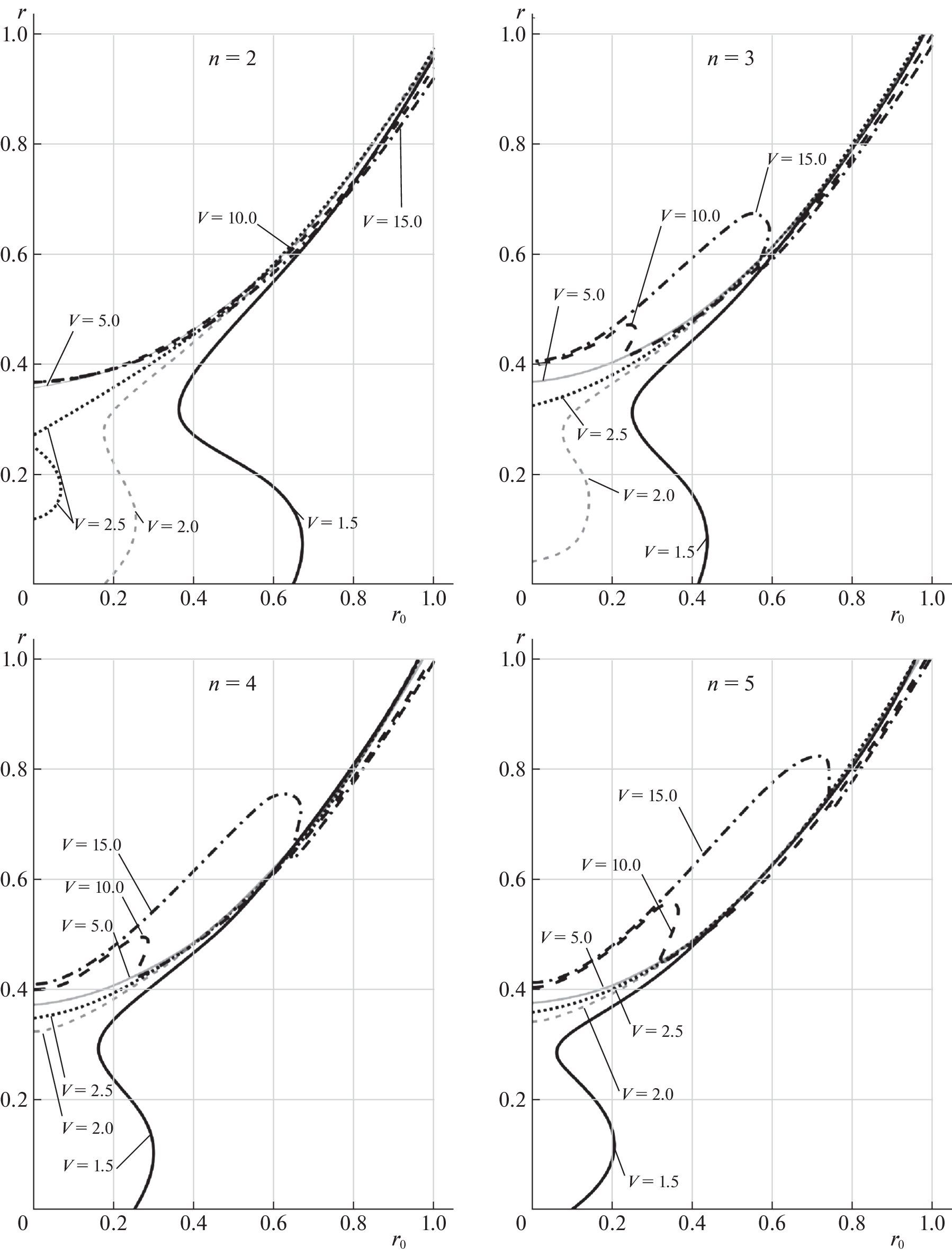

A multilink pendulum located in a flow is considered. On the last link of the pendulum, a wing is installed, on which the interaction with the flow is concentrated. The dynamics of this system are studied as a potential working element of an oscillatory wind power plant. For different flow velocities, periodic modes are numerically investigated that occur under different numbers of links and different values of the external load. It is shown that the maximum power that can be obtained with a two-link pendulum is greater in a wide range of flow velocities than with pendulums with more than two links. At the same time, pendulums with a large number of links make it possible to obtain considerable power in a wider range of load values than a two-link one.

References

Braun M. On Some Properties of the Multiple Pendulum // Archive of Applied Mechanics. 2003. V. 72. P. 899–910. https://doi.org/10.1007/s00419-002-0263-4
Gupta M.K., Sinha N., Bansal K., Singh A.K. Natural Frequencies of Multiple Pendulum Systems Under Free Condition // Arch. Appl. Mech. 2016. V. 86. P. 1049–1061. https://doi.org/10.1007/s00419-015-1078-4
Felmer P.L. Multiple Periodic Solutions for Lagrangian Systems in Tn // Nonlinear Analysis: Theory, Methods & Applications. 1990. V. 15. Iss. 9. P. 815–831. https://doi.org/10.1016/0362-546X(90)90095-X
Tarantello G. Multiple Forced Oscillations for the N-Pendulum Equation // Commun. Math. Phys. 1990. V. 132. P. 499–517.
Roselli P. A Multiplicity Result for the Periodically Forced N-Pendulum with Nonzero-Mean Valued Forcings // Nonlinear Anal. T.M.A. 2001. V. 43. P. 1019–1041. https://doi.org/10.1016/S0362-546X(99)00239-4
Розенблат Г.М. О параметрической стабилизации многозвенного обращенного маятника // АиТ. 1985. № 3. С. 162–165.
Udwadia F.E., Koganti P.B. Dynamics and Control of a Multi-Body Planar Pendulum // Nonlinear Dynamics. 2015. V. 81. P. 845–866. https://doi.org/10.1007/s11071-015-2362-0
Анохин Н.В. Приведение многозвенного маятника в положение равновесия с помощью одного управляющего момента // Изв. РАН. ТиСУ. 2013. № 5. С. 44–53.
Ананьевский И.М., Анохин Н.В. Управление пространственным движением многозвенного перевернутого маятника с помощью момента, приложенного к первому звену // ПММ. 2014. Т. 78. Вып. 6. С. 755–765.
Ананьевский И.М. Управление трехзвенным перевернутым маятником в окрестности положения равновесия // ПММ. 2018. Т. 82. Вып. 2. С. 149–155.
Wojna M., Wijata A., Wasilewski G., Awrejcewicz J. Numerical and Experimental Study of a Double Physical Pendulum with Magnetic Interaction // J. Sound and Vibration. 2018. V. 430. P. 214–230.https://doi.org/10.1016/j.jsv.2018.05.032
Marghitu D.B., Zhao J. Impact of a Multiple Pendulum with a Non-Linear Contact Force // Mathematics. 2020. V. 8. P. 1202. https://doi.org/10.3390/math8081202
Lobas L.G. Generalized Mathematical Model of an Inverted Multilink Pendulum with Follower Force // Int. Appl. Mech. 2005. V. 41. P. 566–572. https://doi.org/10.1007/s10778-005-0125-1
Puzyrov V., Awrejcewicz J., Losyeva N., Savchenko N. On the Stability of the Equilibrium of the Double Pendulum with Follower Force: Some New Results // J. Sound and Vibration. 2022. V. 523. P. 116699. https://doi.org/10.1016/j.jsv.2021.116699
Локшин Б.Я., Самсонов В А. Авторотационные и автоколебательные режимы движения аэродинамического маятника // ПММ. 2013. Т. 77. Вып. 4. С. 501–513.
Локшин Б.Я., Самсонов В.А., Шамолин М.В. Маятниковые системы с динамической симметрией // Современная математика и ее приложения. 2016. Т. 100. С. 76–133.
Selyutskiy Y.D., Holub A.P., Dosaev M.Z. Elastically Mounted Double Aerodynamic Pendulum // Int. J. Structural Stability and Dynamics. 2019. V. 19. № 5. P. 1941007. https://doi.org/10.1142/S0219455419410074
Egger P., Caracoglia L. Analytical and Experimental Investigation on a Multiple-Mass-Element Pendulum Impact Damper for Vibration Mitigation // J. Sound and Vibration. 2015. V. 353. P. 38–57. https://doi.org/10.1016/j.jsv.2015.05.003
Izadgoshasb I., Lim Y.Y., Tang L., Padilla R.V., Tang Z.S., Sedighi M. Improving Efficiency of Piezoelectric Based Energy Harvesting from Human Motions Using Double Pendulum System // Energy Conversion and Management. 2019. V. 184. P. 559–570. Doi: .https://doi.org/10.1016/j.enconman.2019.02.001
Chen J., Bao B., Liu J., Wu Y., Wang Q. Piezoelectric Energy Harvester Featuring a Magnetic Chaotic Pendulum // Energy Conversion and Management. 2022. V. 269. P. 116155. https://doi.org/10.1016/j.enconman.2022.116155
Selyutskiy Y., Dosaev M., Holub A., Ceccarelli M. Wind Power Harvester Based on an Aerodynamic Double Pendulum // Proc. Institution of Mechanical Engineers, P. C: J. Mechanical Engineering Science. 2022. V. 236. № 18. P. 10025–10032. https://doi.org/10.1177/09544062221085
Dosaev M., Klimina L., Selyutskiy Y. Wind Turbine Based on Antiparallel Link Mechanism // New Trends in Mechanism and Machine Science, Mechanisms and Machine Science. V. 43. Springer International Publishing Switzerland, 2017. P. 543–550.
Pigolotti L., Mannini C., Bartoli G., Thiele K. Critical and Post-Critical Behaviour of Two-Degree-of-Freedom Flutter-Based Generators // J. Sound and Vibration. 2017. V. 404. P. 116–140.https://doi.org/10.1016/j.jsv.2017.05.024
Sheldahl R.E., Klimas P.C. Aerodynamic Characteristics of Seven Symmetrical Airfoil Sections Through 180-Degree Angle of Attack for Use in Aerodynamic Analysis of Vertical Axis Wind Turbines // Technical Report SAND-80-2114. Sandia National Labs. (USA), 1981. https://doi.org/10.2172/6548367
Климина Л.А. Метод формирования авторотаций в управляемой механической системе с двумя степенями свободы // Изв. РАН. ТиСУ. 2020. № 6. С. 3–14.
