Effect of an Electric Field on the Crystallization Behavior of Amorphous TlIn1–xSnxSe2 Films

E. Sh. Alekperov; Алекперов Э. Ш.; S. G. Jabarov; Джабаров С. Г.; T. A. Darzieva; Дарзиева Т. А.; G. B. Ibragimov; Ибрагимов Г. Б.; A. M. Nazarov; Назаров А. М.; S. S. Farzaliev; Фарзалиев С. С.

doi:10.31857/S0002337X23010025

Effect of an Electric Field on the Crystallization Behavior of Amorphous TlIn1–xSnxSe2 Films

Авторлар: Alekperov E.S.¹, Jabarov S.G.¹, Darzieva T.A.¹, Ibragimov G.B.², Nazarov A.M.², Farzaliev S.S.²
Мекемелер:
1. Baku State University, AZ1148, Baku, Azerbaijan
2. Abdullaev Institute of Physics, Academy of Sciences of Azerbaijan, AZ1143, Baku, Azerbaijan
Шығарылым: Том 59, № 1 (2023)
Беттер: 10-13
Бөлім: Articles
URL: https://ogarev-online.ru/0002-337X/article/view/140110
DOI: https://doi.org/10.31857/S0002337X23010025
EDN: https://elibrary.ru/OORRYQ
ID: 140110

Дәйексөз келтіру

Толық мәтін

Ашық рұқсат
Рұқсат жабық

Рұқсат берілді
Рұқсат жабық

Тек жазылушылар үшін

Аннотация
Авторлар туралы
Әдебиет тізімі
Қосымша файлдар
Статистика

Аннотация

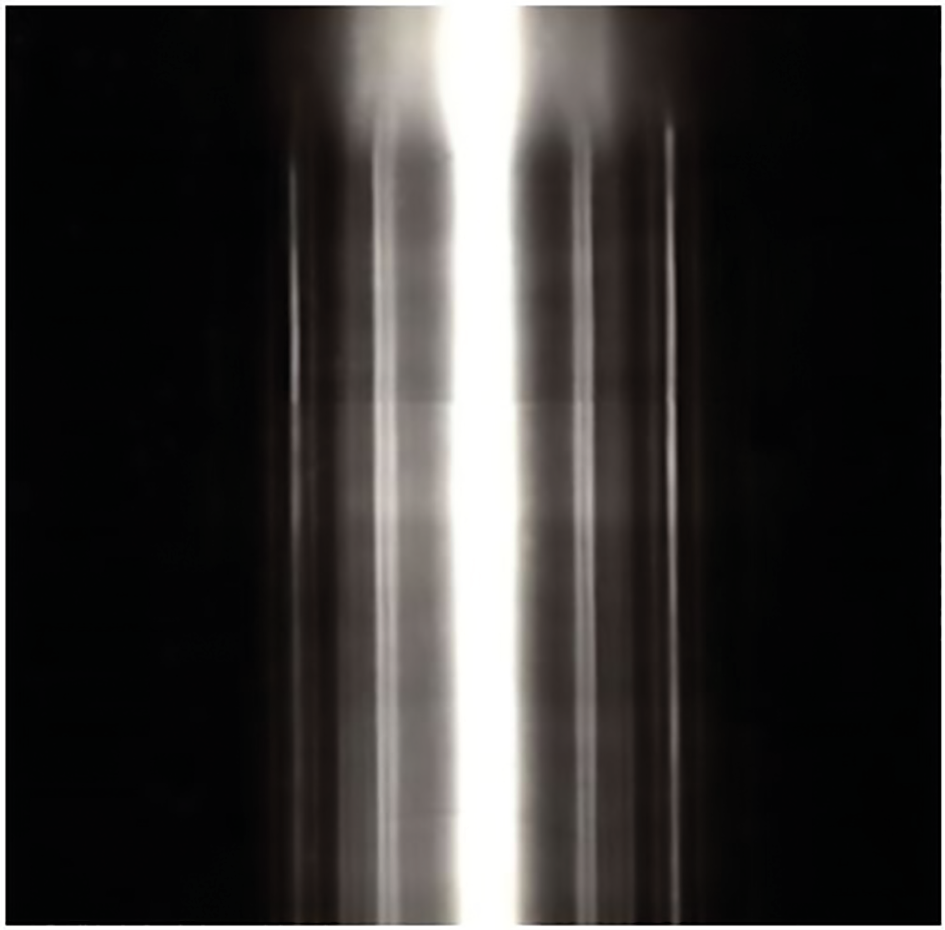

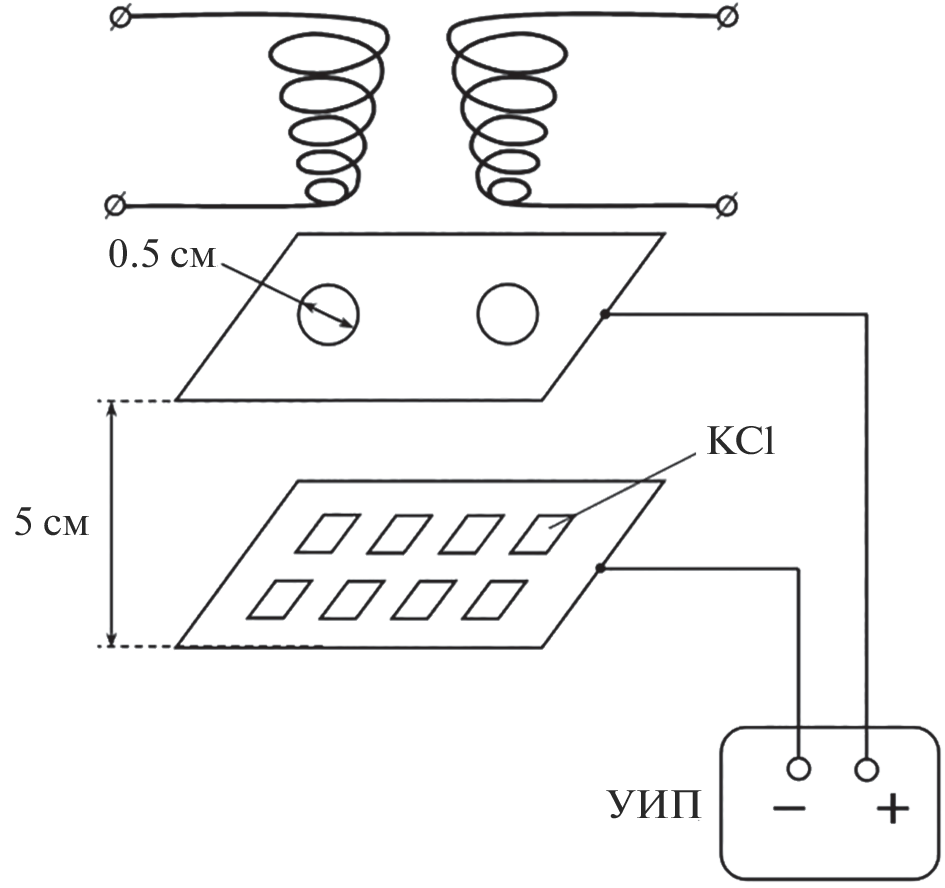

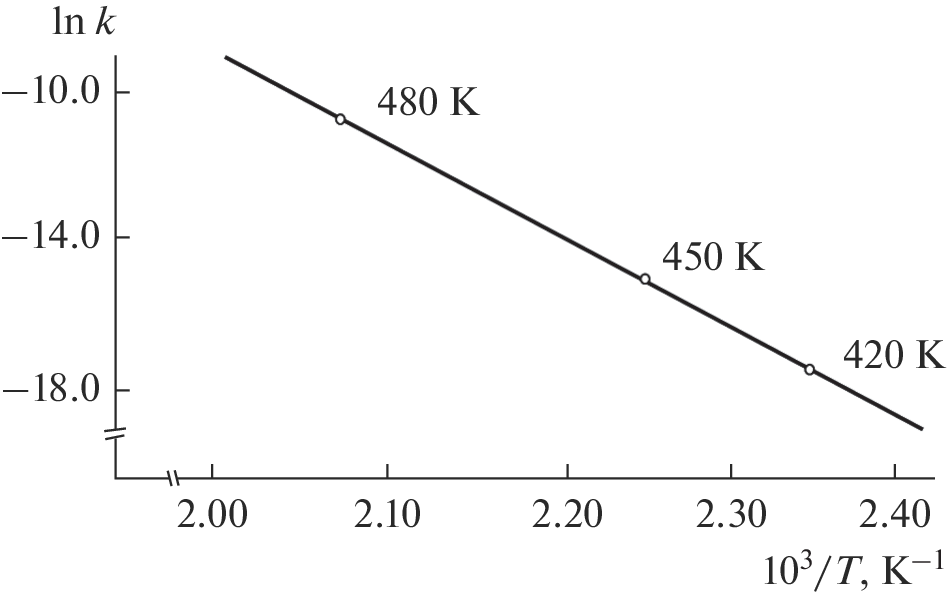

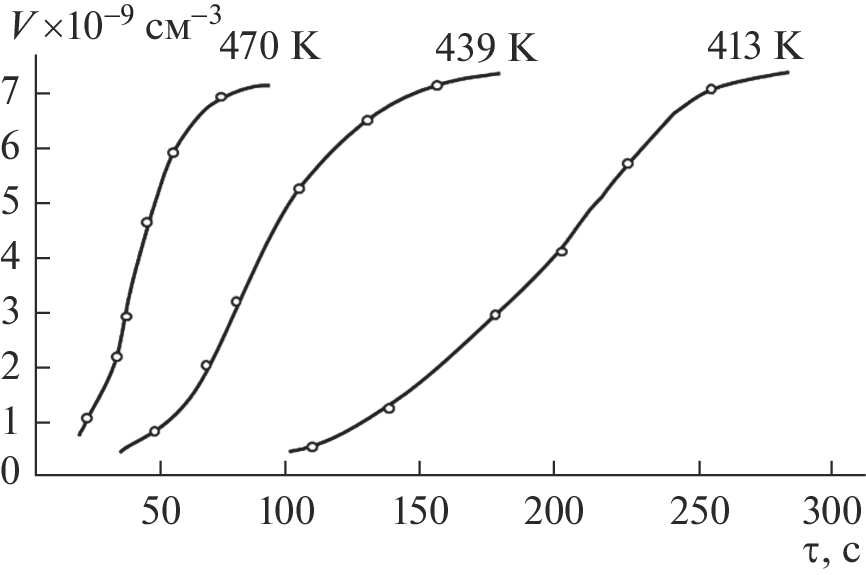

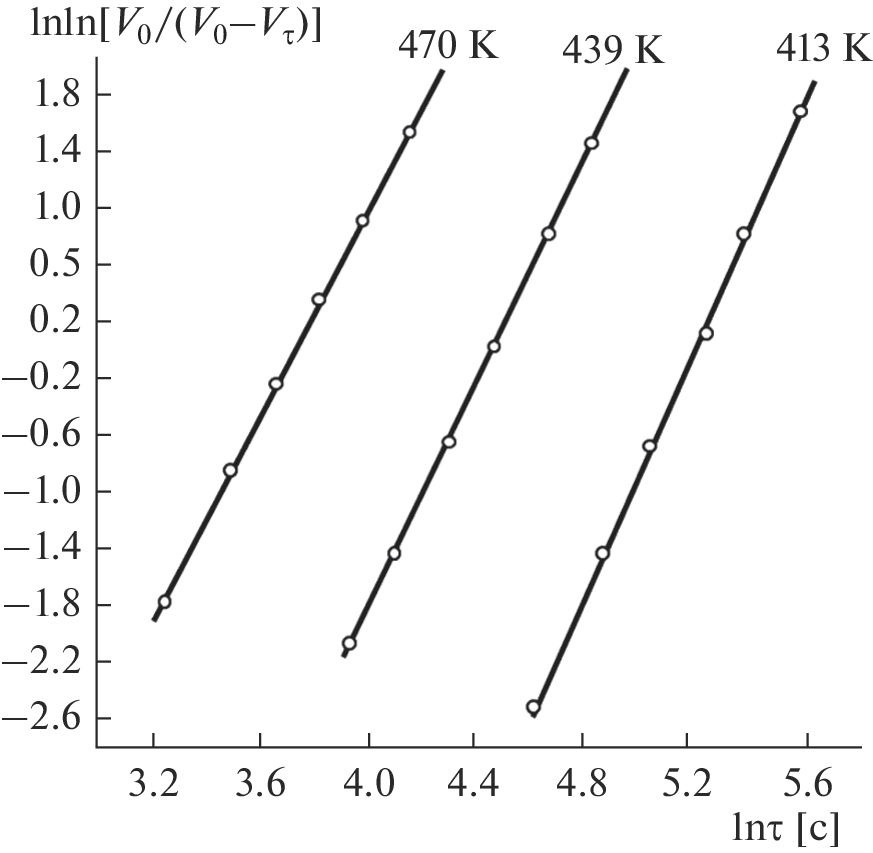

Crystallization kinetics of 30-nm-thick amorphous TlIn_1–хSn_xSе₂ films produced by thermal evaporation under high vacuum in a dc electric field E = 3000 V/cm have been studied by kinematic electron diffraction. The results demonstrate that the formation of the crystal structure of the amorphous films during heat treatment follows Avrami–Kolmogorov relations. Kinetic curves of the phase transformation demonstrate the effect of an electric field on the temperature range of film crystallization and on the activation energies for nucleation and subsequent nucleus growth. The total activation energy for the crystallization process has been determined to be Etotal = 44.92 kcal/mol. The observed diffraction lines of the polycrystalline TlIn_0.93Sn_0.07Sе₂ films in their kinematic electron diffraction patterns can be indexed in tetragonal symmetry (sp. gr. = \( D_{{4h}}^{{18}} \)-I4/mcm [12]) with unit-cell parameters a = b = 0.8358 nm and c = 0.7086 nm. After storage of the films in vacuum at room temperature for more than two months, no changes were detected in their quality or diffraction pattern.

Негізгі сөздер

solid solutions, semiconductor, diffraction, amorphous film, electron diffraction pattern

Әдебиет тізімі

Nowosielski R., Zajdel A., Lesz S., Kostrubiec B., Stokłosa Z. Crystallization of Amorphous Co77Si11.5B11.5Alloy // Arch. Mater. Sci. Eng. 2007. V. 28. № 3. P. 141–148.
Пашаев А.М., Джафаров Т.Д. Физические основы наноэлектроники. Баку. 2014. 88 с.
Kavetskyy T.S., Shpotyuk O.I., Boyko V.T. Void-species Nanostructure of Chalcogenide Glasses Studied with FSDP-related XRD // J. Phys. Chem. Solids. 2007. V. 68. № 5–6. P. 712–715.
Филачев А.М., Таубкин И.И., Тришенков М.А. Твердотельная фотоэлектроника. М.: Физматкнига, 2012. 363 с.
Sanghera J.S., Florea C.M., Shaw L.B., Pureza P. et al. Non-Linear Properties of Chalcogenide Glasses and Fibers// J. Non-Cryst. Solids. 2008. V. 354. № 2–9. P. 462–467.
Kovanda V., Mir Vicek, Jain H. Stmcture of As–Se and As–P–Se Glasses Studied by Raman Spectroscopy // J. Non-Cryst. Solids. 2003. V. 326–327. P. 88–92.
Сардарлы Р.М., Самедов О.А., Алиева Н.А., Гусейнов Э.К. и др. Проводимость по локализованным состояниям системы твердых растворов (TlInSe2)1–x(TlGaTe2)x // ФТП. 2015. Т. 49. B. № 12. С. 1704–1709.
Ismailov D.I., Aliyeva M.F., Alekperov E.Sh., Aliyev F.I. Electron Diffraction Investigation of Structural Diversity of Amorphous Films of Polymorphic TlInS2 // Semiconductors. 2003. V. 37. P. 744–747.
Авилов А.С. Прецизионная электронография: Дис. ... докт. физ.-мат. наук: 01.04.18. М., 1999. 274 с.
Кулыгин А.К., Кулыгин К.В., Авилов А.С. Новые подходы к прецизионным измерениям дифракционных картин в электронографии // Кристаллография. 2020. Т. 65. № 2. С. 325–334. https://doi.org/10.31857/S0023476120020149
Волькенштейн Ф.Ф. Электронные процессы на поверхности полупроводников при хемосорбции. М.: Наука, 1987. 431 с.
Panaxov M.M., Alekperov E.Sh., Qarayev E.S., Sadraddinov S.A. et al. Phase Transition at Thermal Treatment of TlIn1–xSnxSe2 Amorphous Films // AIP Fizika. 2020. V. 26. № 4. P. 28–31.
Чопра К. Электрические явления в тонких пленках. М.: Мир, 1992. 435 с.
